Phanteks NV7 Full-Tower Chassis - Black - PH-NV723TG_DBK01

SKU
CS1424
$219.99
Add to Wish List
Out of Stock

This item is currently out of stock. We are not accepting backorders at this time.

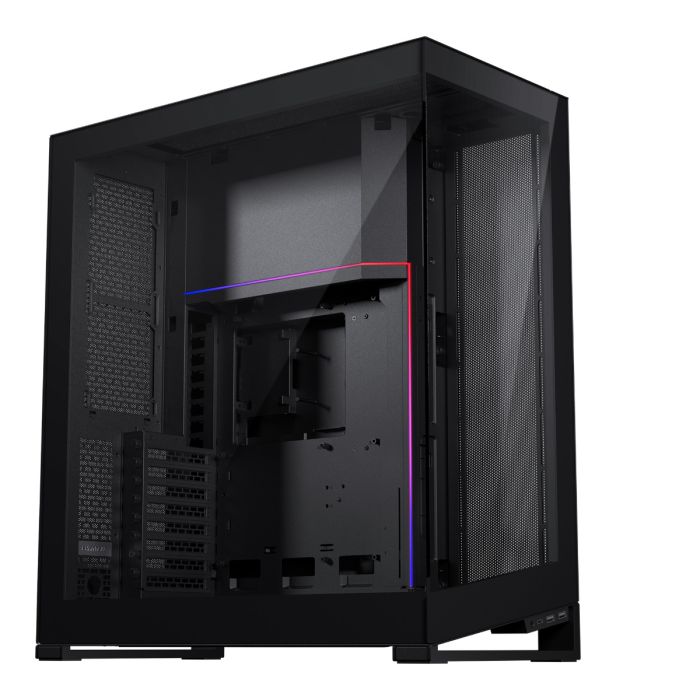

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components. With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.

A picture frame for your system:

Creating a picture-perfect build is the core element of the NV7, with fans positioned all around the motherboard, the heart of your system, like a picture frame. The near-seamless glass panels provide a perfect view of all your system components.

Performance without compromise:

The ultra-fine performance mesh design is featured on all sides of the chassis, combining high airflow with good dust filtration. The bottom features a high-quality dust filter with an immense intake area that provides the best cooling performance to the GPU. A total of twelve 120mm fan positions make sure the NV7 is ready for any challenge.

Innovative building features:

Integrated fan/radiator brackets, LED cable covers, airflow covers, and an array of unique cable management tools make any NV7 build stand out from the crowd.

  • Dimensions: 253 x 532 x 586 mm / 10.0 x 20.9 x 23.1 in (WxDxH)
  • Form Factor: Full Tower
  • Materials: Steel Chassis, Tempered Glass
  • Motherboard support: ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide with LED Cover)
  • Front I/O: 2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel
  • Connectors: Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E, Power LED
  • Window: Yes, Front and Side Tempered Glass 
Expansion & Drive Bays
  • Expansion Slots: 8
  • Vertical GPU Support: Yes, with optional bracket PH-VGPUKT4.0_03 or riser cable
  • Internal 3.5": 2 (1x if all SSD positions are used)
  • Internal 2.5": 6 (4x if both HDD positions are used)
  • D-RGB Controller Output: 7A per Channel, 4A per port

Cooling

120mm fan 

140mm fan 



Side

4x

- 

Top 

3x 

-

Rear 

2x 

-

Bottom

3x

3x



Liquid Cooling

120mm radiator 

140mm radiator 



Side

Up to 360 

- 

Top

Up to 360

- 

Rear

Up to 240 

-

Bottom

Up to 360

Up to 280



Clearance
  • Graphics Card Length: 450mm
  • CPU Cooler Height: 185mm
  • PSU Length: 255mm
  • Side 360 Radiator: 132x440x65mm
  • Top 360 Radiator: 132x440mm
  • Rear 240 Radiator: 132x320mm
