Pico Power Supply for Angelina Cards

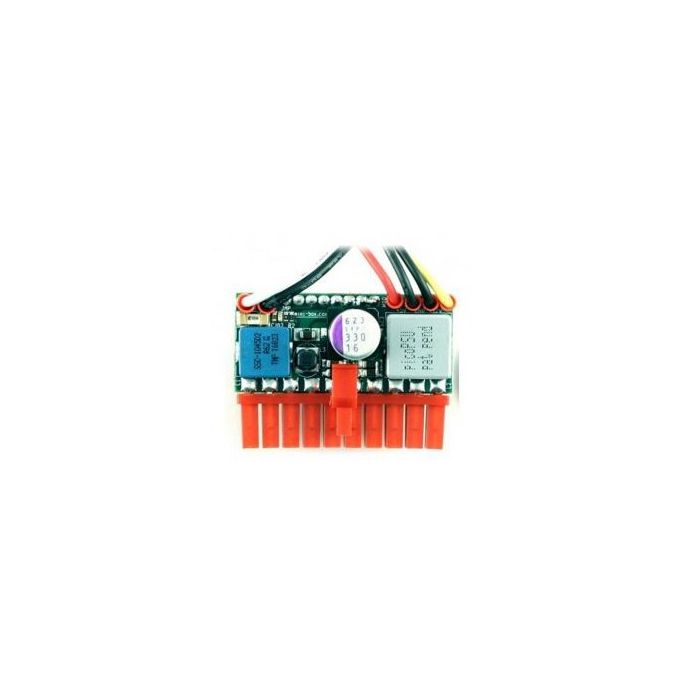

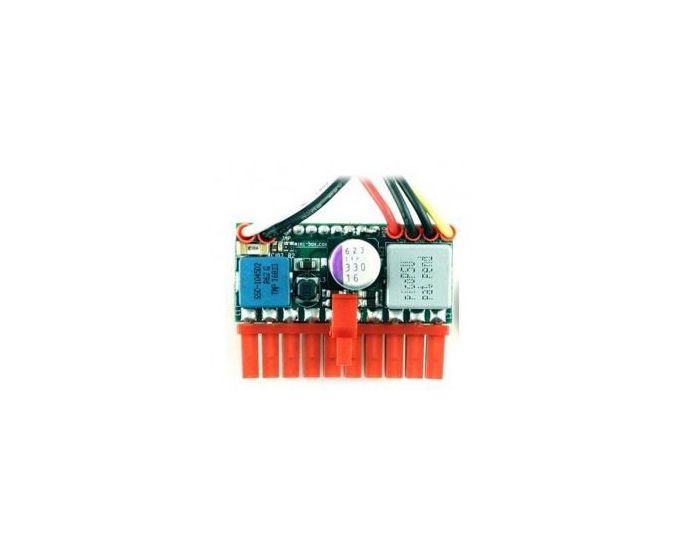

The picoPSU-120-WI-25 is the world's tiniest wide input (12–25 V) DC-DC ATX power supply unit (PSU). With a compact design and fewer cables, the picoPSU is the smallest snap-in power supply. The picoPSU-120-WI-25 provides cool, silent 120 watts of power for small form factor PCs using a single 12–25 volt power source. It also is 1U server rack compliant, equipped with a 10" power lead cable that has a removable connector for adding an extension, and comes with 1 Molex connector, 1 SATA connector, and 1 Berg.
| PicoPSU-120-WI-25 Specifications |
| DC Jack Compatibility | 2.5 x 5.5 x 10 mm |
| Input Required | 12 ~ 25 V DC |
| Maximum Output | 120 W |
| Output Voltage (V) | 5VSB | 3.3 | 5 | 12 | -12 |
| Output Current (A) | 1.5 | 6.0 | 6.0 | 6.0 | 0.1 |
| Output Power (W) | 7.5 | 19.8 | 30 | 72 | 1.2 |
| Peak Current (A) | 2.0 | 8.0 | 8.0 | 8.0 | 0.1 |
Dimensions
(w x h x d) | 44.5 x 30 x 25 mm
1.75" x 1.20" x 0.98" (1U compliant) |
