Not in original box. Card was never installed but original packaging is not available.

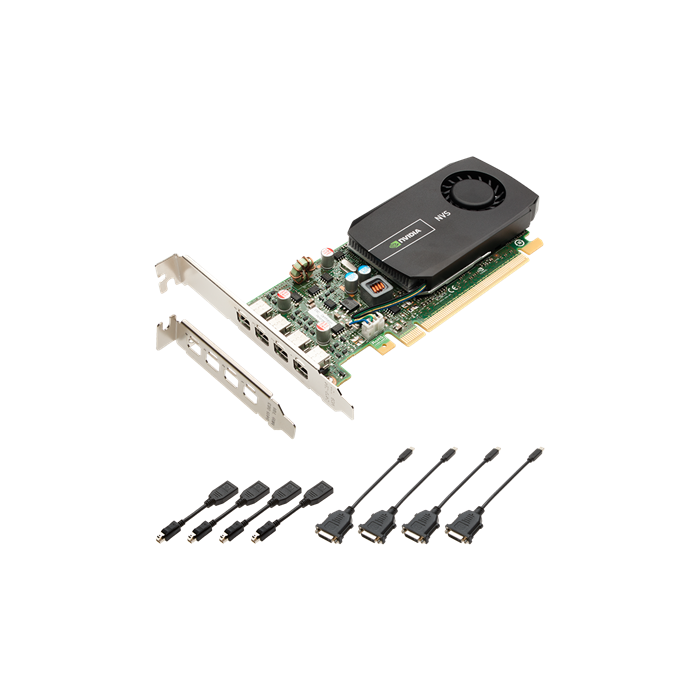

PNY Quadro NVS 510 Graphic Card - 2 GB DDR3 SDRAM - PCI-Express 3.0 x16 - Low-profile - 3840 x 2160 - Fan Cooler - OpenGL 4.3, DirectX 11.0, DirectCompute, OpenCL - DisplayPort

NVIDIA® NVS™ 510: any mix of four DVI or DisplayPort outputs in a low-profile (LP) form factor

Reliably visualize any data across four displays with the power efficient, low-profile form factor NVIDIA® NVS™ 510 business graphics solution. You get support for advanced DisplayPort 1.2 features like Multi-Stream Technology and Stream Cloning, plus the capability to natively drive four ultra-high resolution displays at up to 3840x2160 in small form-factor systems. This configuration of the NVS 510 also includes four locking mini-DisplayPort to DVI-D SL adapters for installations requiring DVI displays or a mix of DVI and DisplayPort monitors.

The NVS 510 also takes advantage of the latest NVIDIA® Kepler™ architecture with 2 GB of dedicated graphics memory to deliver more than 3x the performance of the previous-generation solution-without increasing power. And it's backed by a super-reliable hardware and software platform and robust IT management tools to enable fast, cost-effective integration, deployment, and support across large enterprises. This makes it the ideal solution for today's most demanding business user.


  • Limited Warranty: 3 Year
  • Manufacturer/Supplier: PNY Technologies
  • Manufacturer Part Number: VCNVS510DVI-PB
  • Manufacturer Website Address:
  • Brand Name: PNY
  • Product Name: Quadro NVS 510 Graphic Card
  • Product Type: Graphic Card
  • Maximum Resolution: 3840 x 2160
  • Digital Signal: Yes
  • API Supported: OpenGL 4.3, DirectX 11.0, DirectCompute, OpenCL
  • HDCP Supported: Yes
  • Chipset Manufacturer: NVIDIA
  • Chipset Line: Quadro
  • Chipset Series: NVS
  • Chipset Model: NVS 510
  • Standard Memory: 2 GB
  • Memory Technology: DDR3 SDRAM
  • Bus Width: 128 bit
  • Host Interface: PCI-Express 3.0 x16
  • DisplayPort: Yes
  • Number of DisplayPort Outputs: 4
  • Form Factor: Plug-in CardLow-profile
  • Cooler Type: Fan Cooler
  • Height: 2.7"
  • Length: 6.3"
  • Package Contents:
      Quadro NVS 510 Graphic Card, Attached Full Height (ATX) Bracket, Low-profile (SFF) Bracket, 4 x locking mini-DisplayPort to DVI-D SL Adapters, Driver DVD for Windows 8, 7, Vista, and XP SP3 (32- and 64-bit), Printed QuickStart Guide
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: Energy Star
