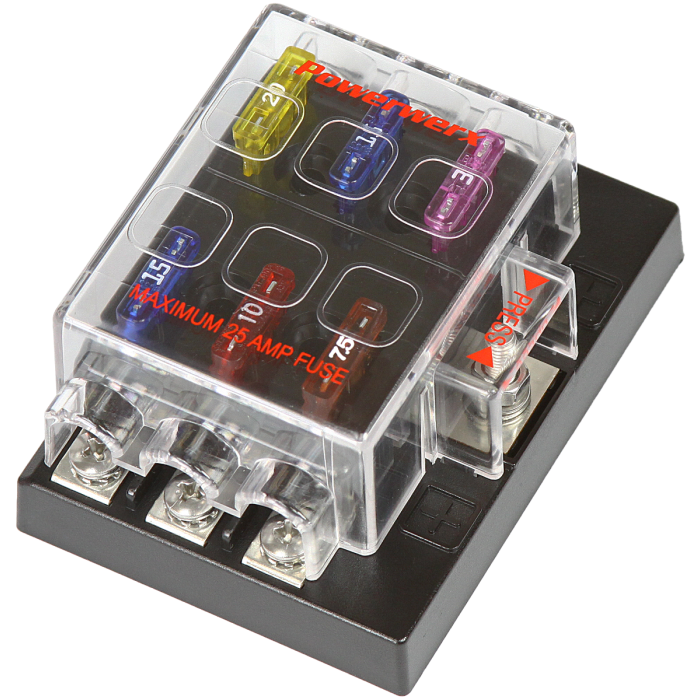

Provides 6 individually fused outputs. Fits standard ATC/ATO blade fuses. Positive distribution bus with #10-32 stud. 25A max per output, 100A max per block. Tin plated terminals. Polycarbonate construction is rugged and lightweight. Fuses not included.
Our most compact 6 position fuse block
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Includes 20 pictographic labels of common circuits
Tin-plated copper buses and fuse clips
Accepts ring or spade type terminals
Accepts ATC and ATO fast acting blade fuses
Voltage Maximum Operating 32V DC
Amperage Maximum Operating (per circuit) 25 Amps
Amperage Maximum Operating (per block) 100 Amps
Stud Terminal #10-32 with hex nut, flat washer and lock washer included.
Four 5.5mm diameter mounting holes for #10 screws.
Polycarbonate base and cover material for rugged lightweight construction.
Measures only: 2.75”W x 3.7”H x 1.55”D.
Fuses sold separately.
