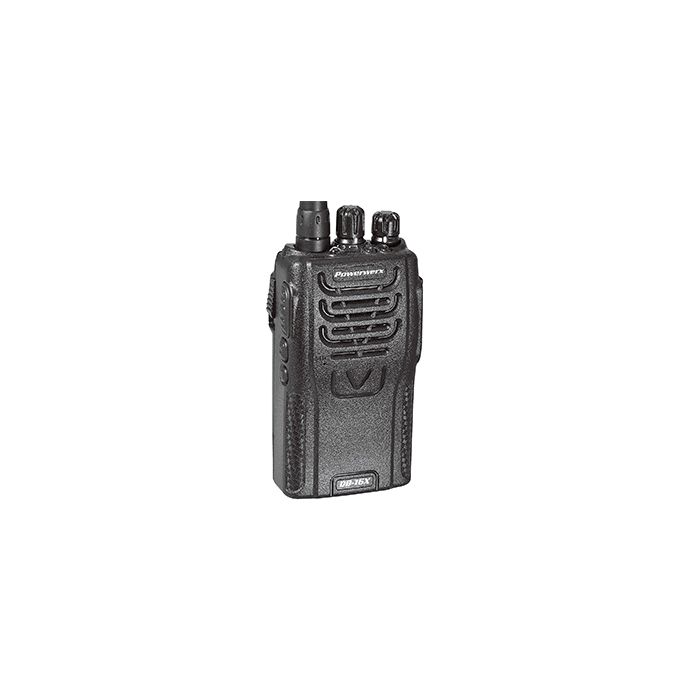

Powerwerx DB-16X Dual Band VHF/UHF 16 Channel Handheld Commercial Radio (Previously KG-UVA1X)
The DB-16X is a compact, high-performance dual band handheld commercial transceiver providing up to 5 Watts of RF power on VHF and 4 Watts on UHF, along with high audio output (500 mW).
Â
Pre-programmed with 16 business channels. Ideal for security patrols, business communications, schools, construction crews, universities, and other organizations that have FCC licensed frequencies. FCC Part 90 certified.
Â
Channel 1           464.5500 MHz  67.0 Tone           1W        Business Ch. CLS-1 (Narrow 2.5 KHz)
Channel 2           467.9250 MHz  67.0 Tone           1W        Business Ch. CLS-2 (Narrow 2.5 KHz)
Channel 3           467.8500 MHz  67.0 Tone           1W        Business Ch. CLS-3 (Narrow 2.5 KHz)
Channel 4           467.8750 MHz  67.0 Tone           1W        Business Ch. CLS-4 (Narrow 2.5 KHz)
Channel 5           469.5125 MHz  77.0 Tone           1W        Business Ch. CLS-54 (Narrow 2.5 KHz)
Channel 6           466.3125 MHz  110.9 Tone        1W        Business Ch. CLS-45 (Narrow 2.5 KHz)
Channel 7           466.3375 MHz  110.9 Tone        1W        Business Ch. CLS-46 (Narrow 2.5 KHz)
Channel 8           466.3625 MHz  110.9 Tone        1W        Business Ch. CLS-47 (Narrow 2.5 KHz)
Channel 9           467.7875 MHz  110.9 Tone        1W        Business Ch. CLS-48 (Narrow 2.5 KHz)
Channel 10         467.8375 MHz  110.9 Tone        4W        Business Ch. CLS-49 (Narrow 2.5 KHz)
Channel 11         467.8625 MHz  110.9 Tone        4W        Business Ch. CLS-50 (Narrow 2.5 KHz)
Channel 12         467.8875 MHz  110.9 Tone        4W        Business Ch. CLS-51 (Narrow 2.5 KHz)
Channel 13         467.9125 MHz  110.9 Tone        4W        Business Ch. CLS-52 (Narrow 2.5 KHz)
Channel 14         469.4875 MHz  110.9 Tone        4W        Business Ch. CLS-53 (Narrow 2.5 KHz)
Channel 15         154.570 MHz    88.5 Tone           1W        VHF Business Ch. (Narrow 2.5 KHz)
Channel 16         154.600 MHz    88.5 Tone           1W        VHF Business Ch. (Narrow 2.5 KHz)
Frequency Range of 136-174, 406-512 MHz RX/TX. FM: 76-108 MHz (RX). Software programmable via the optional low cost USB programming cable.
Â
FCC Approval
Â
The DB-16X is Part 90 certified for commercial use. CE & FCC Part 90 certified, FCC ID: WVTWOUXUN07
Selectable high/low power settings (VHF: 5W high/1W low) (UHF: 4W high/1W low)
Includes extended life 1700 mAh high capacity li-ion battery as standard
Includes intelligent desktop 3-4 hour rapid charger
Loud speaker audio output (500 mW)
Bright flashlight illumination function
Meets IP55 waterproof rating
English make voice prompts enable non-sighted operation (can be turned off)
16 memory channels
Digital FM radio (76-108MHz)
Wide/narrow bandwidth selection (25 or 12.5 kHz)
Windows PC programmable, free software available for download. Optional low cost cable (SKU: WXUSB) required.
Radio to radio cloning with optional cable (SKU: WXCLN)
Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
105 groups DCS/50 groups CTCSS
CTCSS encode/Decode (no decode delay)
Low battery prompt
Busy channel lockout
Selectable time out timer (from 15 to 600 seconds)
Selectable step sizes of 2.5, 5, 6.25, 10, 12.5, 25, 50 or 100 kHz
Multiple scan modes
VOX Function (adjustable level)
Specifications         DB-16X
Frequency Range      RX/TX VHF: 136-174 MHz
UHF:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 406-512 MHz
FM:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 76-108 MHz (RX)
Memory Channels          16 channels (shared)
Operating Voltage      7.4 VDC
Operating Temperature  -22°F to 140°F (-30°C to +60°C)
Dimensions           (W x H x D) 2.4 x 4.8 x 1.6 inches (61 x 121 x 39.5mm) (with 1700 mAh battery pack, without antenna)
Weight               9.7 ounces (274 grams) (with 1700 mAh battery pack)
RF Carrier Power       VHF: 5W high/1W low, UHF: 4W high/1W low
Audio Output Power     500mW maximum
Waterproof Rating      Meets IP55 waterproof rating
Standard Accessories Included with Every Radio
Â
Dual band radio
Dual band antenna (4 inch rubber duck type with standard SMA connector)
Extended life 1700 mAh high capacity li-ion battery pack (16 hours of operation)
Intelligent desktop 3-4 hour rapid charger
Desktop charger AC power cord
Belt clip
Wrist strap
English user manual
Programming software (Free Download)
