bhi PSU12-2A-WW

bhi PSU12-2A-WW SKU: ZBH-PSU12-2A-WW


Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

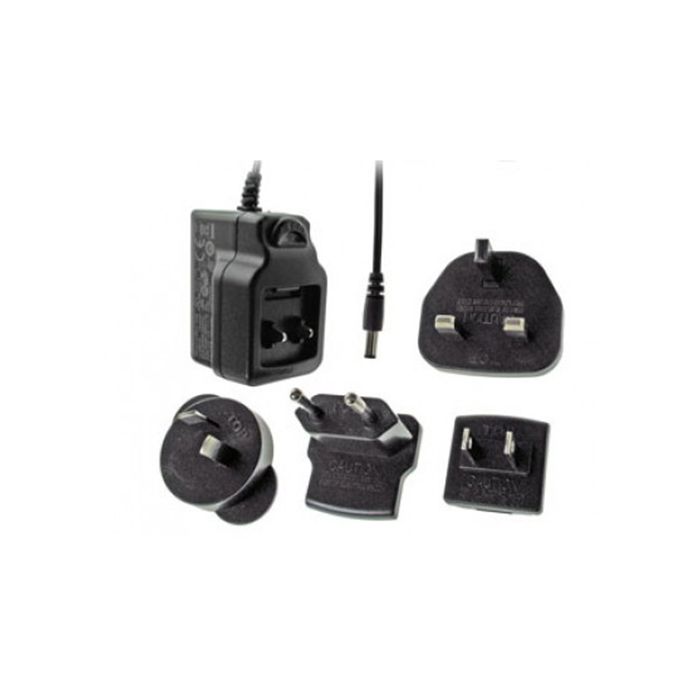

bhi 12V 2A 24W International Power Supply, 2.1mm (for EQ20 range and other bhi DSP products)

Why not use it with your ParaPro EQ20 unit

This 12VDC 2A power supply has a 90-264 vac input & comes supplied complete with UK, European, USA and Australian pins as standard. It carries full international safety approvals making it suitable for world use.

  • Output 12vdc regulated (2A max)
  • Current Min. 0.01A
  • Line Reg +/-5% at rated load
  • Total Output Regulaon +/-5 % at 0—100% load
  • Ripple & Noise (mV p-p) 120mV P-P
  • Over Current and Short Circuit protection
  • Case Size 105 x 52 x 40mm excl. AC pins
  • DC Cord 1.8 Metres & DC Plug 2.1 x 5.5 x 12mm +ve centre
  • Rated Input Voltage 100-240Vac
  • Rated Frequency 50-60Hz
  • Efficiency Meets ErP stage 2
  • No load power consumpion
  • Max Operang temperature 0 to 40 degrees C
  • Storage temperature -20 to 80 degrees C
  • Operating humidity 10% to 90%
  • Safety Approvals CE, TUV, C-Tick, cUL
  • EMC Standards EN55022:2006+A1:200 / EN6100-3-2 / EN6100-3-3
