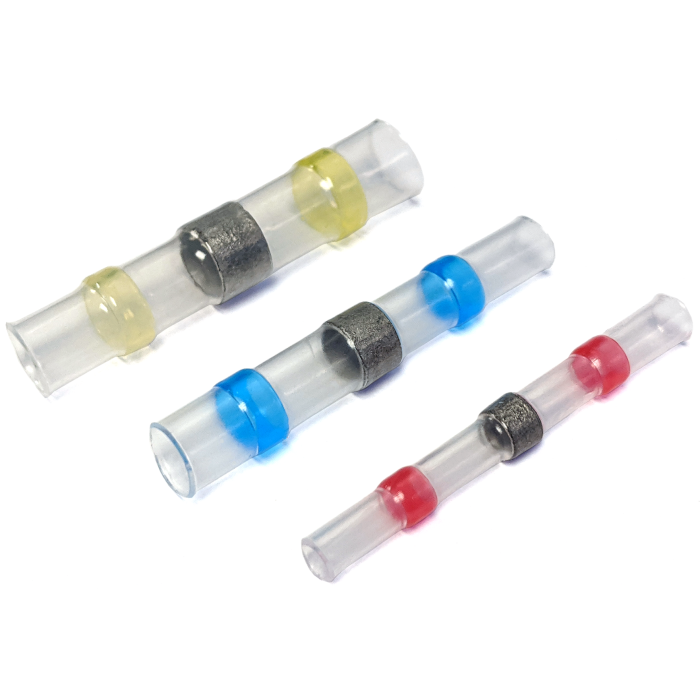

Insulated Solder Sleeve Crimpless connectors available in 3 sizes. 12-10 AWG (yellow), 16-14 AWG (blue) and 20-18 AWG (red) wire sizes. Wide range of applications including: marine, auto, RV and hobbies. Simple one step design, just insert the wires and apply heat, no crimping required. Sold individually.
Find all your wire needs here.
Transparent Polyolefin heat shrink tubing, Solder and Adhesive Glue Ring. Simple one step soldering, sealed and insulated butt type connector. Finished connector ensures strong connection with strain relief and waterproof type connection.
Application: Wire connecting – butt splice type
Easy Identification: Color coded connector tubing (Red, Blue & Yellow)
Simple one step wire connections, no crimp tools required
Internal: Pre-formed solder ring
Outer Material: Polyolefin tubing
Operating Temperature: -55°C to 125°C
Minimum shrink temperature: 80°C
Minimum Solder melting temperature: 138°C
Sold individually
Complies with RoHS and CE standards
