Refurbished Yaesu ATAS-25 Portable Antenna System for 40M-70CM SN158292
SKU
ZUS-5638
$223.95
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:

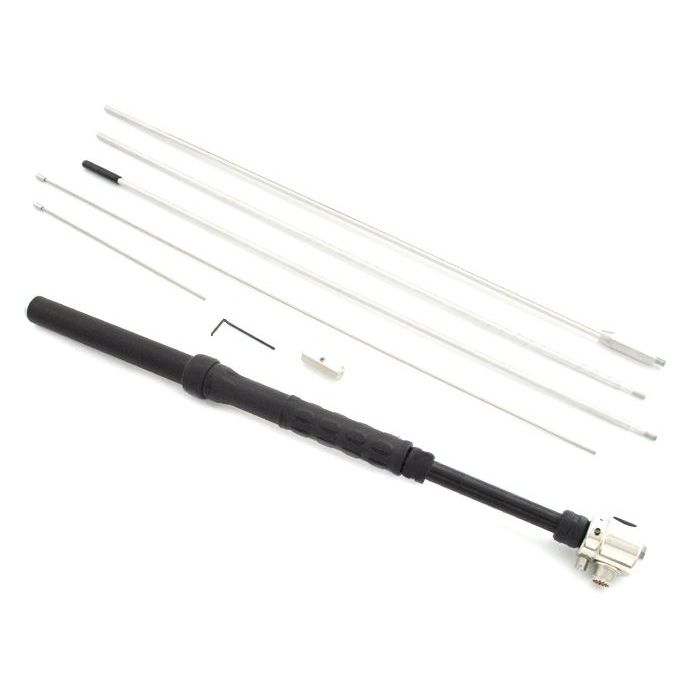

Refurbished Yaesu ATAS-25 Portable Antenna System for 40M-70CM SN158292
Refurbished by Yaesu
The ATAS-25 utilizes a manual tuning system which resonates the radiating element for lowest SWR without the need for expensive, inconvenient mono-band resonating whip assemblies. The ATAS-25 allows dual-frequency operation (on HF or 50 MHz and either 144 or 430 MHz), if two transceivers are combined via a suitable diplexer (not supplied). The ATAS-25 is designed to mount directly onto a standard camera tripod (not supplied).
| OPERATING BAND | RADIATING ELEMENT(S) |
| 7 MHz | Three Elements |
| 14 MHz | Three or Two Elements |
| 21 MHz | Two Elements |
| 28 MHz | Two or One Elements(s), or No Connection |
| 50 MHz | Do Not Connect |
| 144 MHz | Not Used |
| 430 MHz | Not Used |
