Sapphire 11256-00-20G

SKU
VC1137
$189.99
Add to Wish List

Discontinued. Please see AMD Radeon RX VEGA Series GPUs

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

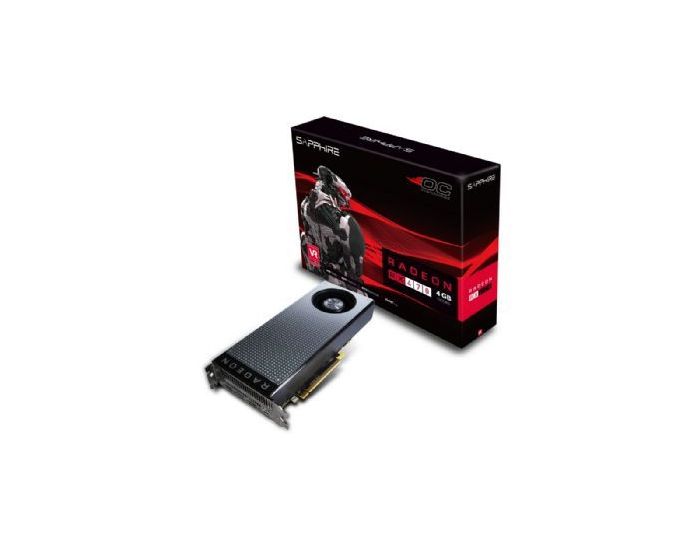

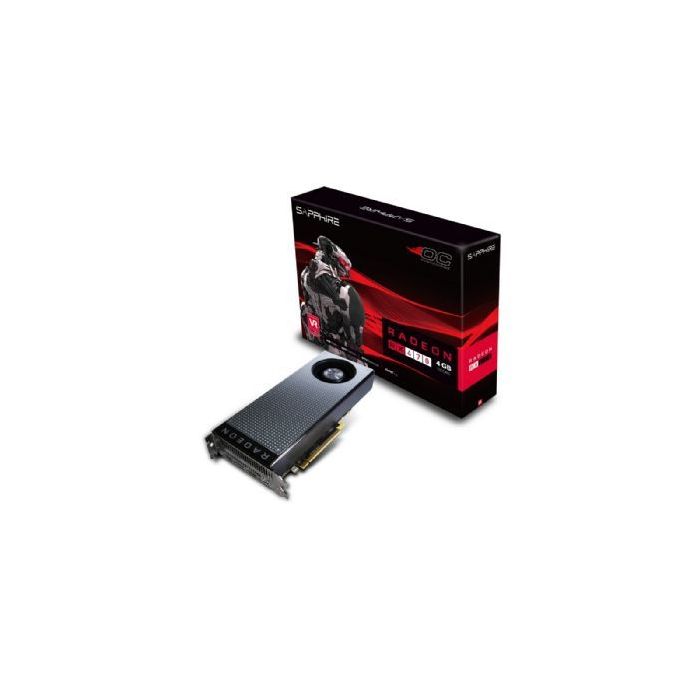

SAPPHIRE AMD Radeon (Ref) RX 470 4GB D5 GDDR5 HDR Ready Graphics Card - PCI-e 3.0

The SAPPHIRE Radeon™ RX 470 is the next big thing in mainstream 1080p gaming. Compared to the previous R9 270 generation GPU, playing on the RX 470 means performance up to 2.4x better in latest titles such as Total War: WARHAMMER or DOOM. Engineered with power savings in mind, the 4th generation Graphics Core Next chip maintains the typical board power of around 170 W. Polaris-powered GPU-s also mean improved geometry engine, increased cache and native asynchronous shaders for unmatched efficiency in DirectX 12.
GPU2048 Stream Processors
14 nm FinFET
4th Graphics Core Next (GCN)
1216 MHz  Engine Clock
932 MHz Boost Engine Clock
InterfacePCI-Express 3.0
Memory256 bit Memory Bus
GDDR5 Memory Type
Up to 1750 MHz,7000Mbps Effective Memory Clock
4096 MB Size
BIOS SupportUEFI BIOS
DisplaysMaximum 4 Outputs
Output1 x HDMI 2.0b
3 x DisplayPort 1.4
Resolution3840x2160 (120Hz) Pixel DisplayPort Resolution
3840×2160p (60 Hz) HDMI Resolution
APIOpenGL® 4.5
OpenCL 2.0
DirectX® 12
Shader Model 5.0
FeatureAMD CrossFire
FreeSync Technology
AMD Eyefinity
AMD Liquid VR Technology
AMD Virtual Super Resolution(VSR)
AMD TrueAudio™ Next Technology
Dolby® TrueHD and DTS-HD Master Audio™ Support
AMD Xconnect ready
Universal Video Decoder (UVD)
DirectX™ 12 Optimized
HDR Ready
Frame Rate Target Control
CoolingBlower
Form Factor2 Part Slot Occupied
242.5(L)X 111.5(W)X 41 (H)mm Dimension /mm
Power Consumption<150W
OSWindows 10 Windows 7
System Requirement500 Watt Power Supply (Suggestion)
1 x 6-pin AUX Power Connector
CD-ROM or DVD-ROM drive for installing software
PCI Express® 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with.
