Seasonic SS-300ET BRONZE

$55.00
Seasonic SS-300ET BRONZE SKU: CS0497

$55.00

Discontinued. No Longer Available

Check Store Stock

Huntsville Store:

Las Vegas:

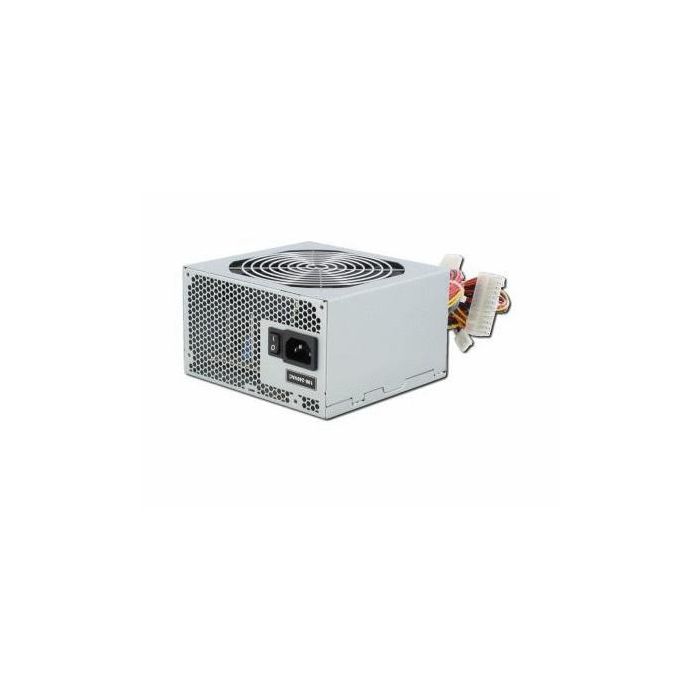

Seasonic SS-300ET 300W 80PLUS Bronze ATX12V Power Supply

Specifications:

  • Mfr Part Number: SS-300ET BRONZE
  • Features:
    • Specification compliance: ATX 12V v2.3
    • Support the latest Intel & AMD Socket
    • Double forward converter circuit
    • PCI-Express & Serial ATA ready
    • High efficiency and reliability
    • Low ripple & noise
    • Super low noise fan control
    • Short circuit protection on all outputs
    • Over voltage protection
    • Over power protection
    • 100% hi-pot test
    • 100% burn in, high temperature cycled on/off
    • Energy-Efficient : 80 PLUS BRONZE Certified
  • Total Power: 300 W
  • Input Voltage: 100~240 V
  • Input Frequency Range: 47 ~ 63 Hz
  • Inrush Current, cold-start: 100A max
  • Power Factor Correction: Active PFC, 99% typical
  • Efficiency: >= 82%
  • Safety: CUL, TUV, CB, CCC
  • EMI/RFI: CE, FCC, C-tick
  • Output: +3.3V @ 18A, +5V @ 20A, +12V @ 24A, -12V @ 0.8A, +5Vsb @ 2.5A
  • Connector: 1x 20+4pin Main Power, 1x 4pin Power Connector, 4x 4pin Peripheral Connector, 4x SATA connector, 1x Floppy Connector
  • Cooling System: 1x 120 mm Fan
  • Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
  • RoHS Compliant
