Seasonic SS-300TFX

SKU
CS0507
$85.00
Add to Wish List

Discontinued. No Longer Available

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

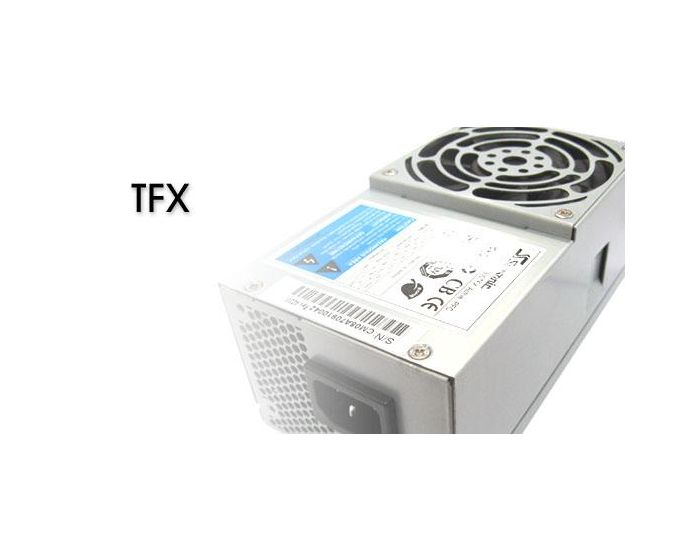

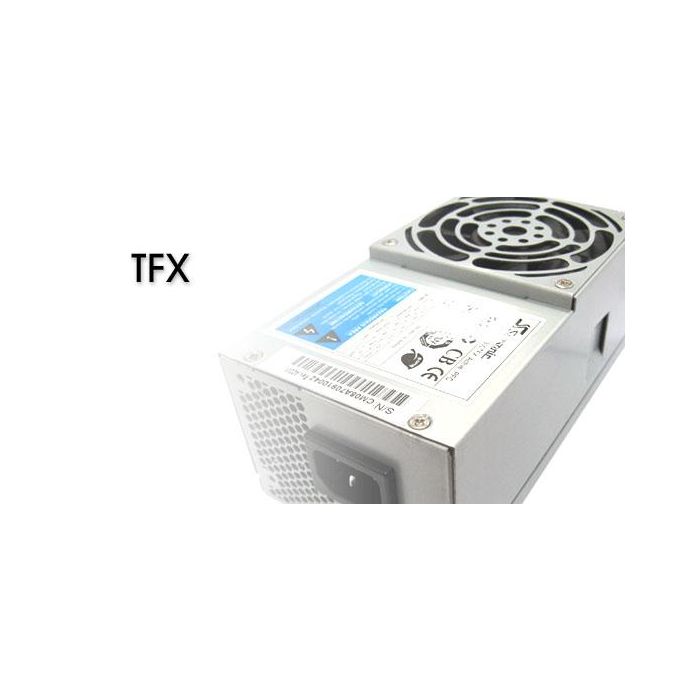

Seasonic SS-300TFX 300W 80PLUS BRONZE TFX Power Supply

Specifications:

  • Mfr Part Number: SS-300TFX
  • Features:
    • Specification compliance: TFX 12V v2.31
    • Pentium 4 ready with P4 connectors
    • Forward converter circuit
    • High efficiency and reliability
    • Low ripple & noise
    • Super low noise fan control
    • Short circuit protection on all outputs
    • Over voltage protection
    • Over power protection
    • 100% hi-pot test
    • 100% burn in, high temperature cycled on/off
  • Total Power: 300 W
  • Input Voltage: 100~240 V
  • Input Frequency Range: 47 ~ 63 Hz
  • Input Current: 5A max.
  • Inrush Current: 100A max, cold start
  • Hold-up Time: 12 ms
  • Power Factor Correction: Active PFC, 99% typical
  • Safety: CUL, TUV, CB
  • EMI/RFI: CE, FCC, C-tick
  • Output: +3.3V @ 20A, +5V @ 20A, +12V @ 21A, -12V @ 0.8A, +5Vsb @ 2A
  • Connector: 1x 24pin Main; 1x 8pin 12V CPU; 1x 4pin 12V CPU, 2x SATA connectors
  • Cooling System: 1x 8cm Double Ball Bearing Fan
  • Dimension (WxLxH): 3.3 x 6.9 x 2.8 inch / 85 x 175 x 70 mm
  • RoHS Compliant
