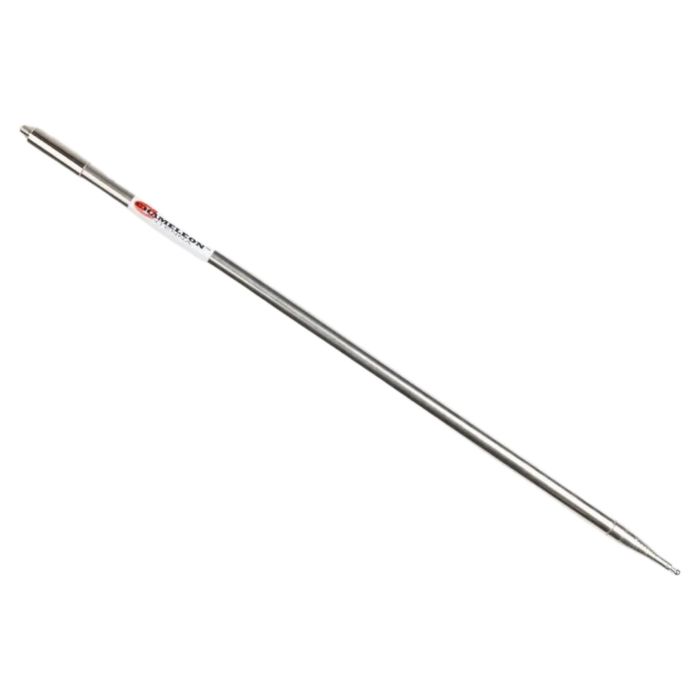

SS25 Stainless Steel Whip 25ft, collapsed 27in

The CHA SS25 is a rust-resistant, 14-sections stainless steel whip that extends to 25 feet and collapses to approximately 27 inches. Its premium stainless steel telescopic sections make it an ideal choice for building collapsible multi-band dipoles, mobile, portable, and base antennas.

Features:

• Versatility: Perfect for travel, DXpeditions, vacations, EMCOMM, first responders, and more.
• Compatibility: Equipped with a 3/8-24 mounting stud for easy integration with other Chameleon products like the CHA HYBRID-MINI, CHA MICRO, CHA UCM, and CHA JAWMOUNT.
• Durability: Unique custome stainless-steel base connector (not traditional chrome-plated brass) pinned on the first section for ruggedness, stability under extreme winds, and excellent performance in demanding situations.

Performance:

• Full ¼ Wave Operation: Operates on 20 & 30meters without a loading coil and on 40/60/80/160 meters with a loading coil.
• Extended Reach: Can be combined with the CHA MIL EXT 2.0 to create a 33.5-foot extended whip. Additional guying support is recommended for this configuration, with the CHA UGS guy kit being ideal for this purpose.
• Compatibility with Other Systems: Compatible with CHA MPAS 2.0 and CHA MPAS LITE antenna systems.

Specifications:

• Power Handling: 1000W
• Materials: Stainless Steel
• Band Coverage: 6M to 30M standalone and 40M to 160M with a loading coil

Dimensions:

• Diameter: 0.78"
• Length (Collapsed): ≈ 27"
• Length (Extended): ≈ 25'
• Weight: 1.3 lb.
