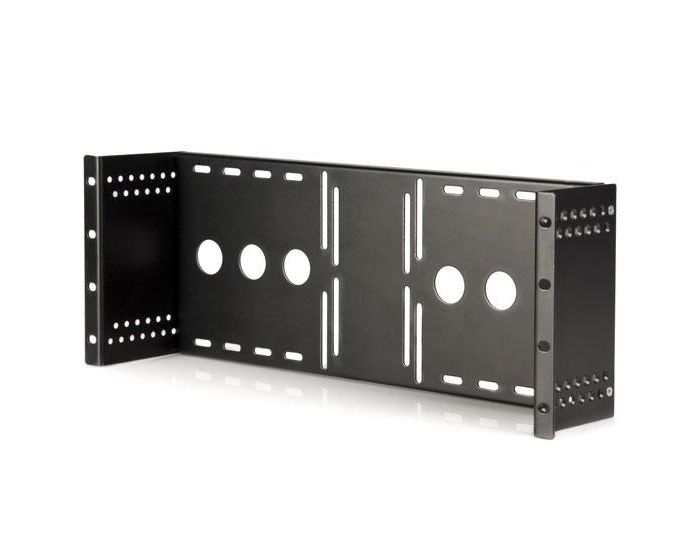

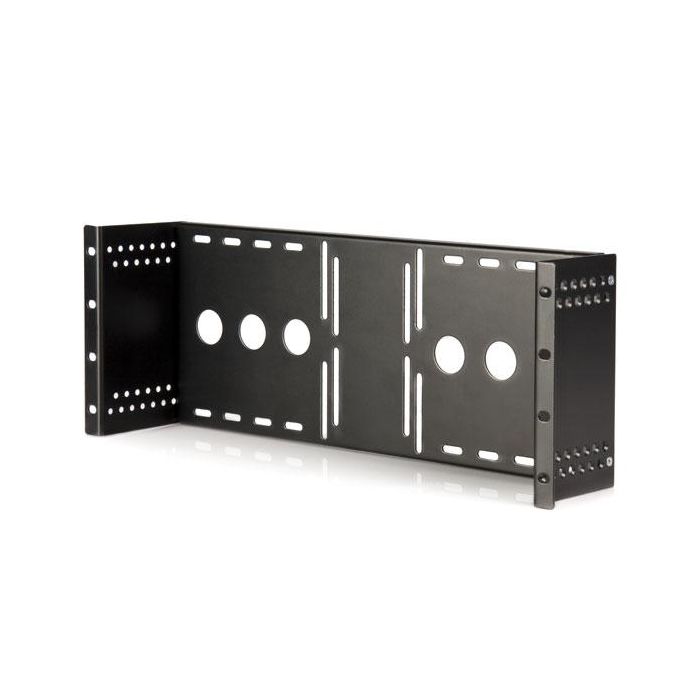

Startech Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet

This 19in LCD mounting bracket lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. The LCD mounting bracket is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting; the bracket features a unique adjustable design that enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed, ensuring optimal server/equipment storage.

A versatile option, the LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).

Constructed from solid cold pressed steel (SPCC), the server rack LCD mount is designed for long-lasting dependability and backed by's Lifetime warranty.

StarTech Advantage
  • Use for uptime/process monitoring with big screens over 19" when mounted outwards
  • This economical LCD mounting bracket provides an inexpensive solution for mounting a LCD display into a rack solution
  • Engineered to meet the EIA and VESA standards, this LCD bracket will work with most 17 and 19 inch LCD monitors
  • This LCD mount is constructed from solid cold pressed steel (SPCC) for durability and backed by’s lifetime warranty
  • Adjustable 100mm and 75mm VESA mounting hole pattern for greater compatibility and control
  • Meets ANSI/EIA RS-310-D standards
  • Adjustable depth between 0 to 3.5 inches at an increment of .25 of an inch
  • Constructed from solid steel at 2.0mm thick, this bracket is designed for durability
  • Backed by lifetime warranty
  • Ideal for installing retail LCD monitor into an existing Rack or Cabinet solution
  • Installing a touch screen display into a rack or cabinet
  • Adding a monitoring display to a security rack or cabinet
  • Mounting a LCD monitor or TV to the wall
