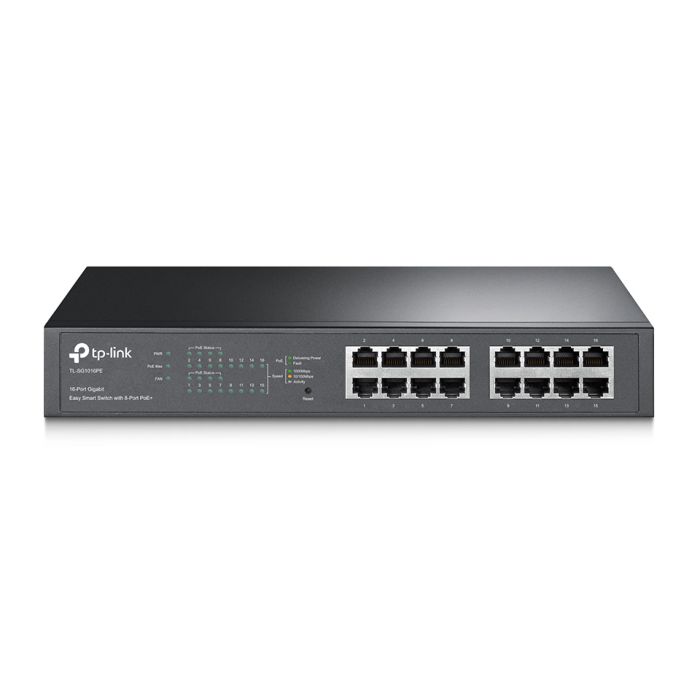

TP-LINK 16-Port Gigabit Smart PoE Switch TL-SG1016PE

$179.99
TP-LINK 16-Port Gigabit Smart PoE Switch TL-SG1016PE SKU: NH0391

$179.99

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

TP-LINK 16-Port Gigabit Smart PoE Switch w/ 8 PoE+ Ports

What This Product Does

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works

8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement

TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 124W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
  • Mfr Part Number: TL-SG1016PE
  • Features:
    • 16 10/100/1000Mbps RJ45 ports
    • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
    • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
    • Simple network set-up on top of plug-and-play connectivity
    • Web-based user interface and management utility simplify configuration
  • Hardware Features:
    • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    • Interface: 16x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
    • Network Media:
      • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
      • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
      • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
    • Fan Quantity: Fanless
    • Power Consumption: Maximum - 124.4W (220V/50Hz)
    • Power Supply: 100-240VAC, 50/60Hz
    • PoE+ Ports(RJ45):
      • Standard: 802.3 at compliant
      • PoE Ports: Port 1- Port 8
      • PoE Power Budget: 110W
    • Dimensions (WxDxH): 11.6 x 7.1 x 1.7 inch / 294.0 x 180.0 x 44.0 mm
  • Performance:
    • Switching Capacity: 32Gbps
    • Packet Forwarding Rate: 23.8Mbps
    • MAC Address Table: 8K
    • Packet Buffer Memory: 4.1Mbit
    • Jumbo Frame: 9KB
  • Software Features:
    • Quality of Service:
      • Support Port-Based/802.1p/DSCP priority
      • Support 4 priority queues
      • Rate Limit
      • Storm Control
    • L2 Features:
      • IGMP Snooping V1/V2/V3
      • Link Aggregation
      • Port Mirroring
      • Cable Diagnostics
      • Loop Prevention
    • VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
    • Management: Web-based GUI, Easy Smart Configuration Utility
    • Transmission Method: Store-And-Forward
  • Others:
    • Certifications: FCC, CE, RoHS
    • Package Contents: TL-SG1016PE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
    • System Requirements: Microsoft Windows for running Utility
    • Environment:
      • Operating Temperature: 0°C~40°C (32°F~104°F)
      • Storage Temperature: -40°C~70°C (-40°F~158°F)
      • Operating Humidity: 10%~90% non-condensing
      • Storage Humidity: 5%~90% non-condensing
