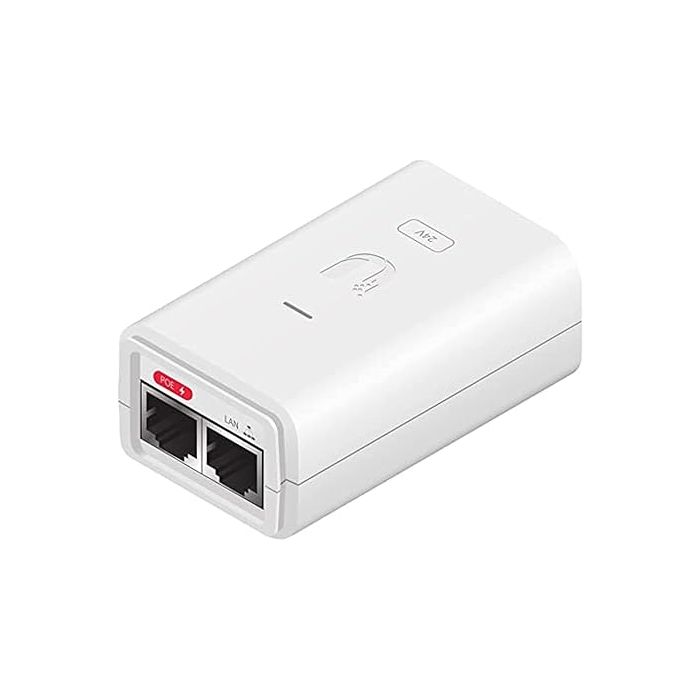

Ubiquiti Low-Power 24V PoE Adapter (POE-24-7W-G-WH)
The Ubiquiti POE-24-7W-G-WH Low-Power PoE Adapter provides a reliable and efficient power over Ethernet (PoE) solution for compatible Ubiquiti devices. This adapter is designed to protect your PoE devices while offering stable power delivery and data transmission through its integrated Gigabit LAN ports.
This model delivers 24V DC at 0.3A output, using the standard 2-pair powering method (Pins 4, 5 (+) and Pins 7, 8 (-)). It features a Gigabit LAN port and includes a remote reset capability via a built-in reset button, allowing for convenient device management. The compact and lightweight design, coupled with comprehensive surge protection features, makes it a safe and versatile choice for indoor installations.
Key Features and Specifications:
- Model: POE-24-7W-G-WH
- Output Voltage: 24V DC @ 0.3A
- Powering Method: 2-pair (Pins 4, 5 (+) and 7, 8 (-))
- LAN Speed: Gigabit LAN Port (Yes)
- Remote Reset: Yes (Reset button included)
- Rated Voltage: 100-240V AC @ 50/60Hz
- Surge Protection: Difference and common mode (Max. surge discharge 1500A power)
- Efficiency: 80+%
- Weight: 72.1 g (2.5 oz)
- Dimensions: 72 x 45 x 33 mm (2.8 x 1.8 x 1.3")
- Operating Temperature: 0 to 40Ëš C (32 to 104Ëš F)
- Compliance: NDAA Compliant, CE, FCC, IC, UL
