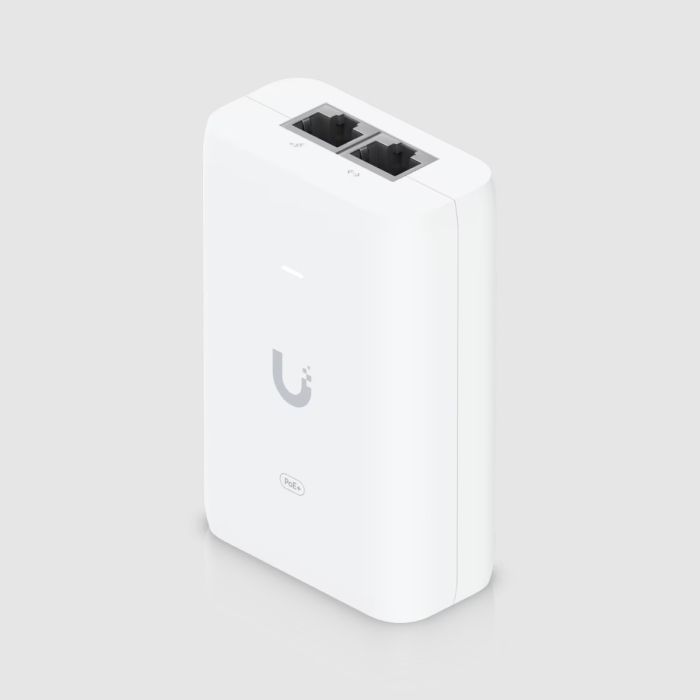

PoE+ Adapter (30W)
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
The PoE+ Adapter (30W) is a reliable and efficient power solution designed to power your UniFi PoE+ devices, offering both power delivery and a Gigabit LAN connection. This adapter is an excellent choice for installations where a PoE+ switch port is not available or when you wish to reduce the power load on your existing PoE switch.
Key Features:
- Powerful PoE+ Output: Delivers up to 30W of PoE+ power to compatible devices.
- Enhanced Protection: Features surge, peak pulse, and overcurrent protection to safeguard your equipment.
- Integrated Connectivity: Contains an RJ45 data input, an AC cable with earth ground, and a PoE+ output, providing both power and a Gigabit LAN connection.
- Status Monitoring: Includes an LED indicator for quick status monitoring.
- Broad Compatibility: Compatible with a range of UniFi PoE+ devices, including U6-LR, UVC-G5-PTZ, U6-IW, UVC-AI-DSLR, UVC-AI-Pro, UDB-Pro, UTP-G3-Touch-Wall, and UA-Ultra.
- Compact Design: Dimensions of 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") and a light weight of 156 g (5.5 oz).
- Global Voltage Support: Operates with a rated voltage of 100—240V AC at 50/60Hz.
- Reliable Performance: Offers 87% efficiency and stable power output.
- Robust Protection: Includes clamping protection (11V Data, 60V power) and surge protection (difference and common mode).
- Wide Operating Temperature: Functions reliably in ambient operating temperatures from 0 to 40° C (32 to 104° F) and 10 to 95% noncondensing humidity.
- NDAA Compliant: Meets high security and supply chain standards.
- Certifications: Holds CE, FCC, IC, UL, and CCC certifications.
