uBITX Version 6 HF SSB and CW Transceiver (Basic-Kit)

UBITX V6 – BUY THE BASIC KIT

Buy it from GigaParts today!

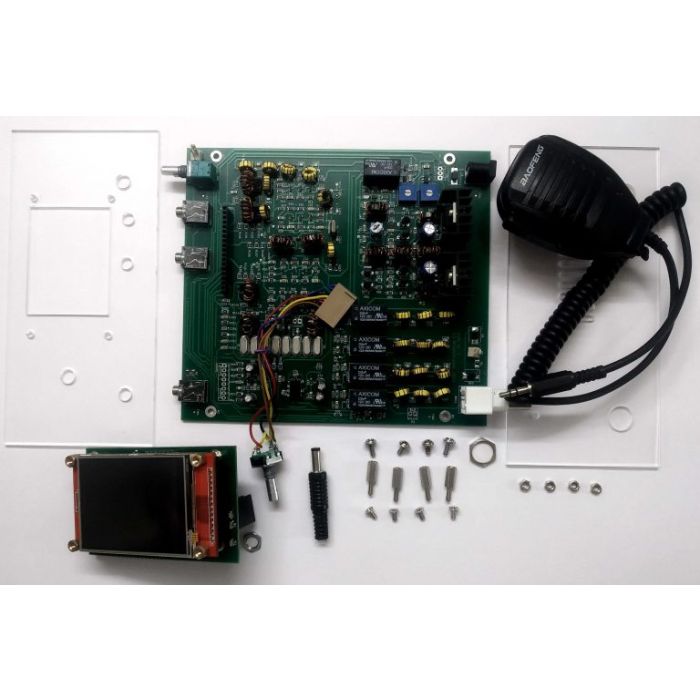

Contents of the Basic uBITX v6 kit:

• Main uBITX board with mounting hardware
• TFT – Raduino Board with Display and mounting hardware
• Tuning encoder with cable presoldered
• Microphone with PTT
• Acrylic front panel and back panels as templates
• Tuning Knob
• Volume Knob
• Power supply jack

 Operating the Radio

• VFOs The VFOs A and B are switch by simply touching on either of them. The white box shows the currently active VFO
• RIT Touch the RIT to enable Receiver Incremental Tuning. Touch it again to turn it off
• USB/LSB Touch on either of the buttons to choose the sideband
• CW Touch to enable CW mode. In CW mode, you can also use your microphone’s PTT for a transmitting a quick morse code message. Choose your keyer from the setup menu
• SPL(IT). Touch to enable Split operating. Now, the VFO A becomes the transmitting frequency and the VFO B is the receiving frequency. It is great for working DX!
• Bands Touch on any band buttons to quickly switch to the band
• WPM (CW) Set the CW sending speed of the keyer
• TON(E) Set the sidetone frequency
• FRQ Allows you to enter a frequency directly using a keypad shown in last image.

Software

The Arduino source code for the µBITX is available on https://github.com/afarhan/ubitxv6
