USED Digirig DR-891 Interface Kit for Yaesu FT-891

USED- MISSING ORIGINAL PACKAGING

Digirig DR-891 Interface Kit for Yaesu FT-891

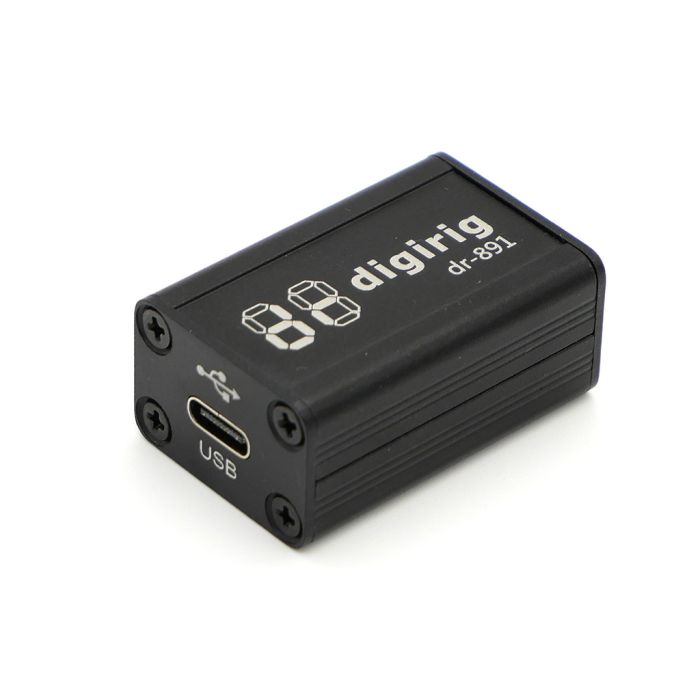

Digirig DR-891
USB digital modes interface kit for Yaesu FT-891 including transceiver cables.

The cables in this kit are not sold separately because they can not be used with other Digirig Models. DR-891 is the only Digirig model that supports a downlink USB connection (red socket). This model of Digirig can be used to interface other transceivers with the functionality equivalent to Digirig Lite. Connect any of the standard Digirig audio/PTT cables into the black socket labeled “audio”.

Do not plug anything into DR-891’s colored socket labeled “USB” other than the cable with the red molding included in this kit or cable from the accessory kit.

Supports complete connectivity of your Yaesu FT-891 (audio, PTT, CAT) over a single USB connection.

Combines USB hub with passthrough to FT-891’s USB port, audio codec and PTT circuitry.
Supports PTT via serial CAT control.
Supports PTT by GPIO3 of CM108 audio codec.
Supports VOX PTT by the tone or payload on the unused right channel.
Individual PTT methods can be disabled with the configuration pads on the PCB.
Works with all major OS flavors: Windows, MacOS and Linux, Android, iOS.
Audio/PTT (black) TRRS socket is compatible with existing Digirig audio cables.
Isolation can be easily added using inexpensive USB isolator dongle.
