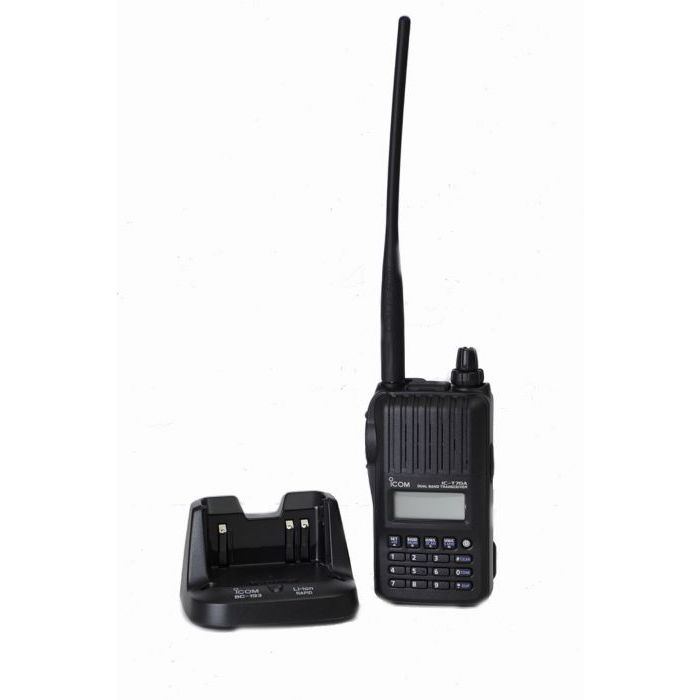

Used Very Good ICOM T70A-HD SN15003953. No original packaging. Manual is missing cover and is very stained. Includes battery, belt clip, antenna, charger with base and wrist strap.
Impressive audio output volume, long-lasting power, plenty of memory channels, rugged construction, rich in analog features – the T70A offers practical 2m/70cm dual band operation and ruggedness, updated for today's ham radio enthusiasts.
700mW loud audio
The IC-T70A HD users a BTL (bridge-tied load) amplifier that doubles the audio output. Every ham knows that power = current × voltage. The T70A’s BTL increases the audio output by doubling the voltage delivered to the speaker. The 36mm large speaker delivers 700mW of loud and intelligible audio* even in noisy environments.
*Typical value using internal speaker.
Long lasting battery life
Get 5W of power on VHF and UHF in a small, lightweight package. Get up to 19 hours* of operating time with the T70A HD power version, which includes a Li-ion battery pack (BP-265) and rapid charger (BC-193). All that power comes is an easy to hold and use size – not too big, not too small. The T70A Sport version, ideal for long storage or quick back-up, features an AA alkaline battery case instead of a charger/rechargeable battery pack.
* Typical value using internal speaker.
External DC power jack
An external DC power jack allows for operation and charge when used with an external DC power supply (10-16V DC).*
The BP-265 cannot be charged using the external DC power jack.
A total of 302 memory channels
With 302 alphanumeric memory channels, including 50 band edges and 2 call channels, the IC-T70A HD gives you flexible scanning lists. With a maximum of 26 memory banks*, you can pick and choose the desired banks for scanning from the 250 memories.
Up to 100 channels per bank.
Built-in CTCSS/DTCS
CTCSS and DTCS tone codes provide quiet stand-by and allow you to use tone-access repeaters. Pocket beep alerts you when a matching tone frequency is received. Tone scan detects the subaudible tone that is used for repeater access.
Internal VOX function
The IC-T70A HD has an internal VOX (Voice Operated Transmit) function for convenient hands-free operation when used with a compatible optional headset and plug adapter cable. Also, the VOX level and VOX delay time are adjustable.
IP54 and MIL-STD 810 rugged construction
Dust protection and water-resistance equivalent to IP54 provides reliable operation for practical outdoor operation. The IC-T70A HD tested to and passed MIL-STD 810 environmental tests.
Other Features
- WX channel and WX alert function (USA version only)
- Power save function
- SMA type antenna connector
- Automatic repeater function (USA version only)
- 1750 Hz tone for European repeater access
- TOT (time out timer) setting
- Repeater lockout and busy channel lockout
- PC programmable with optional CS-T70
- Transceiver-to-transceiver cloning (Optional)
- Direct keypad frequency entry
- 16 DTMF autodial memories
- Auto power off
- LCD backlight
- Wide/narrow channel spacing
