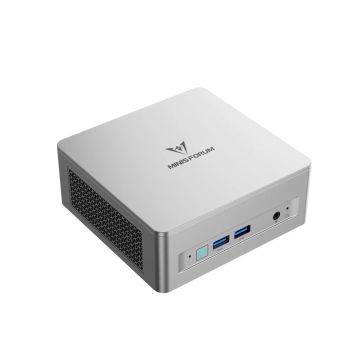

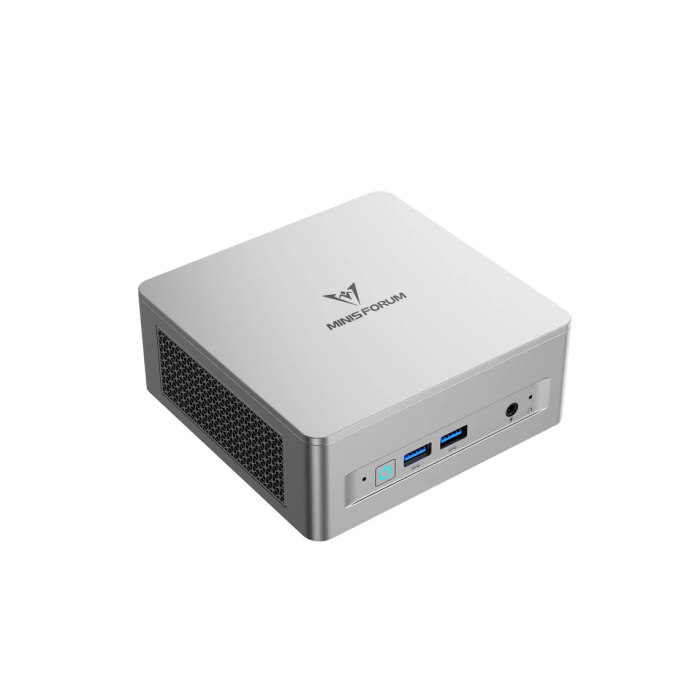

The Minisforum UM870 Slim is a compact and powerful mini desktop PC designed for a versatile range of tasks, from demanding productivity and content creation to casual gaming and multimedia consumption. Its "Slim" moniker reflects its efficient use of space, making it a great choice for tight setups or those looking to minimize clutter without sacrificing performance.
At its core, the UM870 Slim features the AMD Ryzen 7 8745H processor. This 8-core, 16-thread APU (Accelerated Processing Unit) provides robust multi-tasking capabilities and high performance for complex computations. Graphics are handled by the integrated AMD Radeon 780M, a highly capable iGPU based on the RDNA3 architecture. The Radeon 780M supports ultra-high-definition image quality with multiple display outputs, including HDMI 2.1 (up to 8K@60Hz/4K@120Hz), DisplayPort 1.4 (up to 4K@120Hz/240Hz), and USB4 (up to 8K@60Hz), making it suitable for professional work and immersive entertainment.
The system comes equipped with 32GB of ultra-fast DDR5-5600 RAM, ensuring smooth multitasking and efficient handling of memory-intensive applications. Storage is provided by a 1TB PCIe 4.0 NVMe SSD, offering lightning-fast boot times and rapid data access. For networking, it features a 2.5GbE LAN port for wired connections, along with Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for robust wireless connectivity. The mini PC runs on Windows 11 Pro, providing a secure and feature-rich operating environment.
Connectivity options are plentiful, including USB 3.2 Gen2 Type-A ports, USB 2.0 Type-A ports, a USB4 port (supporting Alt Mode for display and power delivery), and a 3.5mm combo audio jack. Despite its compact size (approximately 130 x 126.5 x 50.4 mm and weighing around 0.67 kg), the UM870 Slim delivers impressive performance while maintaining efficient cooling and relatively low noise levels under typical loads.
Key Features:
- Processor: AMD Ryzen 7 8745H (8 Cores, 16 Threads, up to 4.9 GHz Max Turbo Frequency)
- Graphics: AMD Radeon 780M (Integrated RDNA3 GPU)
- RAM: 32GB DDR5-5600 SO-DIMM (Max 96GB support via 2 slots)
- Storage: 1TB PCIe 4.0 NVMe SSD (Supports dual M.2 2280 NVMe SSD slots up to 4TB total)
- Operating System: Windows 11 Pro
- Video Outputs: 1x HDMI 2.1 (8K@60Hz/4K@120Hz), 1x DisplayPort 1.4 (4K@144Hz/240Hz), 1x USB4 (8K@60Hz)
- Networking: 2.5GbE RJ45 LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.3
- Ports:
- Front: 2x USB 3.2 Gen2 Type-A, 1x Headphone/Microphone Combo Jack, Clear CMOS button
- Rear: 2x USB 2.0 Type-A, 1x USB4 (Alt PD), 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5G RJ45 Port, 1x 3.5mm Audio Jack (Combo)
- Dimensions (LWH): 130 x 126.5 x 50.4 mm
- Weight: 0.67 kg (approx. 1.48 lbs)
- Power Supply: 120W External Adapter
- Cooling: Efficient design for 54W TDP (up to 65W in performance mode)
