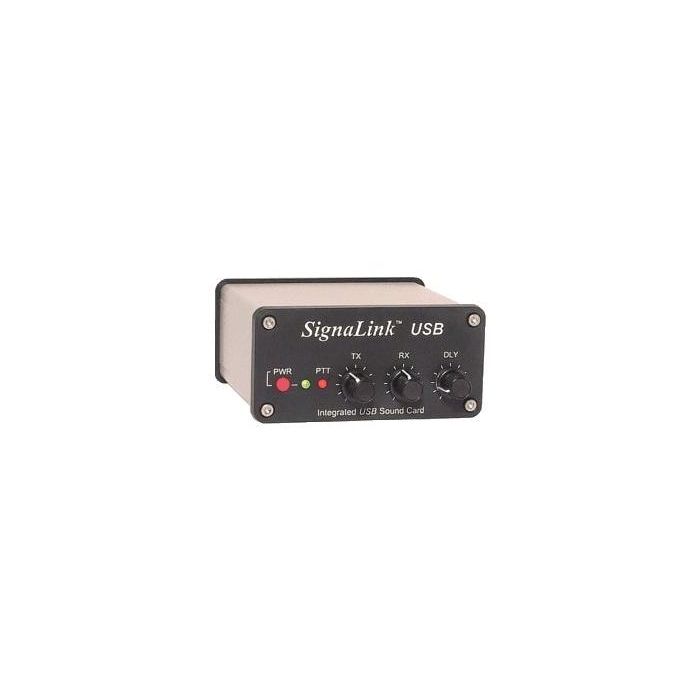

Used Very Good Tigertronics SignaLink USB for 8-Pin Round Mic Connector SN165784

Used Very Good Tigertronics SignaLink USB for 8-Pin Round Mic Connector SN165784

Currently setup for Alinco but adjusting internal jumpers can work on any other radio...comes with USB cable and 8-pin cable

Features:

• FCC Certified - Unlike many competitors, the SignaLink USB has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
• Built-in Low Noise Sound Card - This provides optimum performance and frees your computer's existing sound card for other uses. It also greatly simplifies installation and operation, by reducing the number of cable connections, and by providing consistent performance that is independent of the computer's sound card.
• Simple Installation - The SignaLink USB has only one USB connection to the computer, and in most cases, only one connection to the radio* There are no audio cables to get mixed-up!
• Easy Setup and Operation - The SignaLink USB's built-in sound card provides consistent audio levels and performance that is completely independent of the computer's sound card. This lets us streamline our Audio Level Setting procedure like never before. Simply set the software "Transmit" audio controls as described in the SignaLink manual, and then adjust the SignaLink's front panel "TX" control for the desired RF power level. Setting of the RX Level is even easier, as this is done completely by the SignaLink front panel "RX" control. There are no software "Recording" controls to adjust!
• Convenient Front Panel Controls - You can now easily adjust your TX Audio, RX Audio and Transmit Delay without having to open the SignaLink case. This lets you optimize your Transmit Audio (RF Power), Receive Audio level ("waterfall drive"), and Transmit "Hang Time" delay "on the fly"!
• Works with ALL Radio Mic, Data, and Accessory Ports - The SignaLink USB works with ALL radios, and can be attached to your radios Mic, Data, or Accessory port. This allows most users to attach the SignaLink to the back of the radio (Data or Accessory Port) and leave the microphone plugged in!
• Supports All Sound Card Digital & Voice Modes - The SignaLink USB supports ALL Digital and Voice modes that are available for sound card interfaces. This includes ALL traditional modes such as CW, RTTY, AMTOR, and SSTV (to name a few), and ALL new modes such as PSK-31, MT-63, and EchoLink. All standard sound card communications programs will work with the SignaLink USB.
• Complete Isolation - Unlike some interfaces on the market, ALL SignaLink models COMPLETELY isolate your computer from your radio. This eliminates troublesome ground loops and prevents hum and noise from degrading the signals. The SignaLink USB provides isolation through the use of audio transformers and a relay-based PTT keying circuit.
• Transmit Audio / "Side Tone" Output - A rear panel "Monitor" jack can be used with headphones or powered (amplified) speakers to monitor your Transmit Audio, or Side Tone during CW operation.
• External Speaker Support - If your installation requires that you attach the SignaLink to your radio's External Speaker jack, then you can plug an external speaker or headphones into the SignaLink's rear panel "Aux" jack and continue to hear your RX Audio.
• No External Power Required - The SignaLink USB is always powered by the computer's USB port, so external power is NEVER required.

  Compatible Radios Include:

Yaesu (We recommend the Jumper Module for easier installation)
FT-107/107M
FT-736/736R
FT-747/757
FT-757GX/767GX
FT-840
FT-847
FT-890
FT-920
FT-950
FT-980
FT-990
FT-1000/1000D
FT-1000MP
FTdx5000
FT-2000
FT-5100

Icom (We recommend the Jumper Module for easier installation)
IC-1201/1271/1275
IC-22U/25/27/28
IC-228/229/251AE
IC-255/260/271/290
IC-2400/2500
IC-37A/38A/375
IC-3200/3210/3220
IC-45/47/48
IC-471/475/490
IC-505/551/560/575
IC-707/718/720/725/726
IC-728/729/730/735
IC-736/737/738/740/745
IC-746/746PRO
IC-756/756PRO
IC-756PROII/PROIII
IC-7400/7700/7800
IC-751/761/765/775/781
IC-820H/901 /910

Kenwood (We recommend the Jumper Module for easier installation)
TM-201/211/221/231
TM-241/2530/2550
TM-2570
TM-321/331/3530/401
TM-421/431/441/521
TM-531/541/621/631
TM-701/721/731
TR-50/751/851
TS-50/60/140/430/440
TS-450/570/660/670
TS-680/690/701/711
TS-780/790/811/850
TS-870/930/940/950
TS-2000
TW-4000/4100

Alinco (We recommend the Jumper Module for easier installation)
ALD-24T
ALR-22T/22HT/72T
DR-110T/112T
DR-130T/135E/135T
DR-150/235T
DR-430T/435E/435T
DR-510T/570T
DR-590T/592T/599T
DR-600T /610E/610T
DR-620E/620T
DX-70T /70TH/70EH
DX-77
