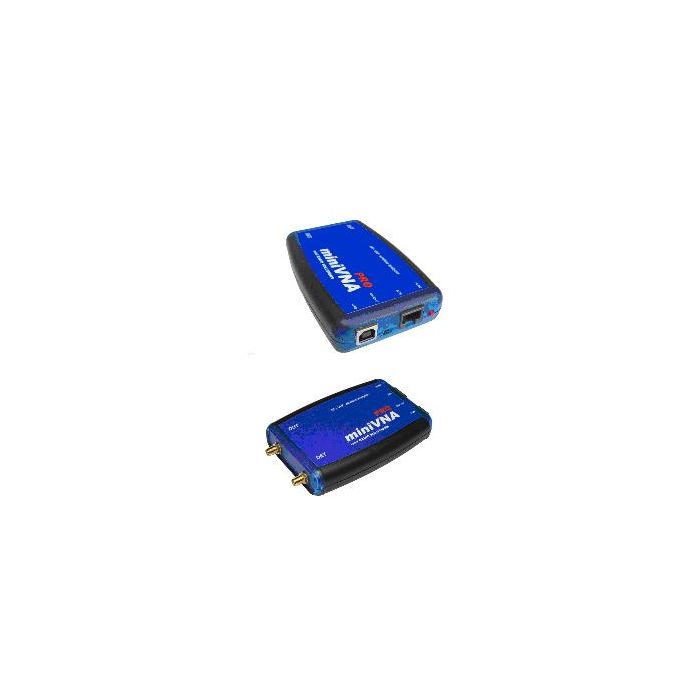

miniVNA Pro - HF & VHF Antenna Analyzer

Miniature Antenna Analyzer Covering 0.1 to 200MHz

Also measure cable losses, cable length, transmission, bandwidth, and quality of filters, etc.

Connects to computer with an USB cable, power is supplied over USB!

For remote connection, Bluetooth and Li-Ion Battery are included!

The mini-VNA Pro BT is a further development of the worldwide highly acclaimed mini-VNA Network Analyzer. The most prominent enhancements are a built-in LiIon battery and the new Bluetooth interface. Both enhancements allow you to use the mini-VNA Pro BT outdoors, directly at the base of the antenna.

Further functions and technical data of the mini-VNA Pro BT

•Frequency range 0.1 to 200MHz

•Calibration using open/short-load for accurate results

•Range of impedance Z from 1 to 1000 Ohms

•Two ports VNA with S11 and S12 display; displayed and save results

•I/Q DDS Generator with 0 dBm output power

•Two separate RF outputs for I/Q for SDR experiments and IMD measurements with independant attenuator from 0 to 55dB, phase angle adjustable to 1° precision

•Built in Bluetooth® Adaptor (Class 1) for wireless remote measurements

•Built in Li-Ion 1000mAh battery, (4 hours full-scan operation)

•Built in battery charger (up to 400mA)

•Accessory port for future optional interfaces and frequency extenders

•Low power consumption, 220mA @3.6V, (analyzer mode using USB port)

•Power save mode

•SMA connectors for better isolation

•extended dynamic range: up to 90dB for transmission, up to 50dB for reflection

•Boot loader for future firmware upgrades

•User friendly interface for PC Windows, Linux and MAC

•Integrated Smith Chart in software

•Measurements of motional crystal parameters, cable lengths & more

•Export data in several formats: JPG, Excel, ZPLOT, S2P, PDF
