ABR Industries ZCB14097-NC
Must Have Accessories
150ft RG8 Pre-Cut Coax Length (No Connectors) - Ultra-Flex UV Resistant & Direct Burial Jacket - Weather-Proof Heat Shrink Tubing Installed- Up to 2db less loss than RG-213

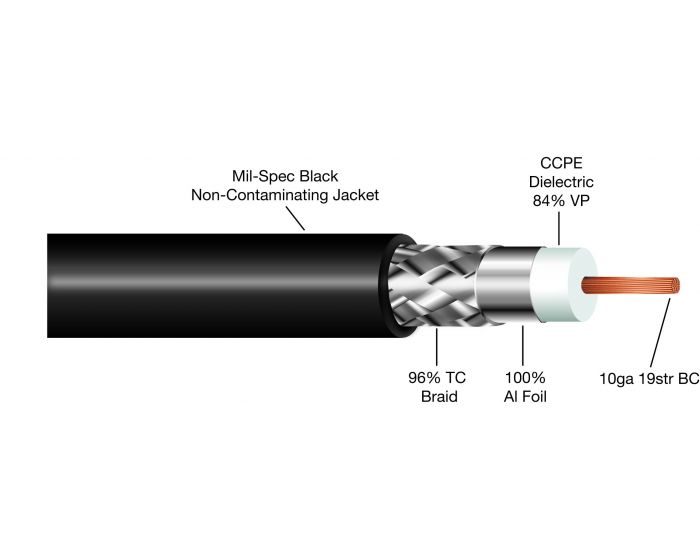

High quality low loss coaxial cable
Closed Cell Polyethylene Dielectric
84% Velocity of Propagation
Flexible and Moisture Proof
Double Shield - (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket
, Low Loss
Attenuation @ 100ft/Pwr/Efficiency
0.5dB @ 10MHz/4.83kW/90% E
0.8dB @ 30MHz/2.77kW/83% E
1.1dB @ 50MHz/2.14kW/78.5% E
1.8dB @ 150MHz/1.22kW/65.4% E
3.3dB @ 450MHz/0.69kW/47.3% E
RoHS Compliant. Made in America

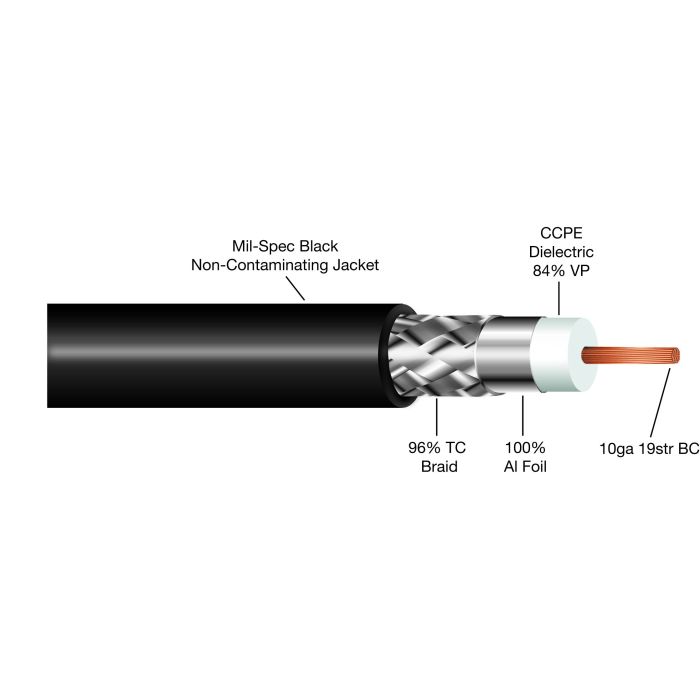

High quality low loss coaxial cable
Closed Cell Polyethylene Dielectric
84% Velocity of Propagation
Flexible and Moisture Proof
Double Shield - (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket
, Low Loss
Attenuation @ 100ft/Pwr/Efficiency
0.5dB @ 10MHz/4.83kW/90% E
0.8dB @ 30MHz/2.77kW/83% E
1.1dB @ 50MHz/2.14kW/78.5% E
1.8dB @ 150MHz/1.22kW/65.4% E
3.3dB @ 450MHz/0.69kW/47.3% E
RoHS Compliant. Made in America
