ABR Industries 25' Grounding Braid - 233/2-4X-25
Introducing the ABR Industries 233/2-4X-25: your reliable companion for efficient electrical grounding and connectivity. With its exceptional features and superior build quality, this 25ft 1/2in Flat TC Ground Braid is designed to meet your demanding electrical needs.
Featuring a Center Awg of 10ga, this ground braid provides a robust and reliable pathway for current flow. The stranding is meticulously crafted with a woven pattern consisting of 38x48x8 strands, ensuring excellent conductivity and durability. The conductor material used is high-quality tinned copper, known for its low resistance and corrosion resistance properties, resulting in enhanced performance and longevity.
The ABR Industries 233/2-4X-25 boasts a remarkable current rating of 53 Amps, making it suitable for a wide range of applications. Whether you're working on a residential, commercial, or industrial project, this ground braid can handle substantial electrical loads with ease.
Equipped with a #10 (3/16") stud ring terminal, this ground braid facilitates secure and convenient connections. The ring terminal is meticulously constructed with nickel-plated brass, offering excellent conductivity, resistance to corrosion, and durability. This combination of materials ensures reliable and long-lasting performance, even in demanding environments.
With a length of 25ft, this ground braid provides ample flexibility and reach, allowing for convenient installation and maneuverability. The 1/2-inch width ensures optimal coverage and conductivity, providing an effective grounding solution for your electrical systems.
Whether you're an HAM/Amatuer Radio Enthusiast, electrician, contractor, or DIY'er, the ABR Industries 233/2-4X-25 is the ideal choice for your grounding needs. It combines exceptional performance, durability, and ease of use to deliver a reliable and efficient electrical grounding solution. Invest in the ABR Industries 233/2-4X-25 today and experience the difference it can make in your electrical projects.

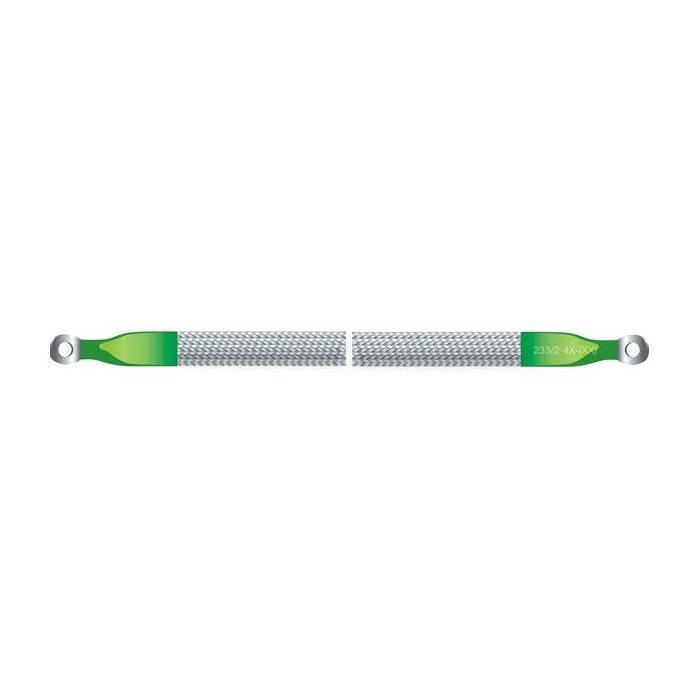

25' Grounding Braid 1/2" Flat Tinned Copper Medium Grade with #10 Stud Ring Terminals - Weather-Proof HS Tubing
| Physical Characteristics |
| Center Awg |
10ga |
| Stranding |
Woven (38x48x8 strands) |
| Conductor Material |
Tinned Copper |
| Current Rating |
53 Amps |
| Ring Terminal Size |
#10 (3/16”) |
| Ring Terminal Material |
Nickel Plated Brass |
Calculate Attenuation = K1 x sqrt(F) + K2 x F (dB/100 feet) K1 Resistive Loss Constant.
K2 is dielectric Loss constant F is Frequency is MHz
Attenuation set at VSWR=1.0 ; Ambient = +25°C (77°F)
Power: VSWR=1.0; Ambient = +40°C;
Inner Conductor = 100°C (212°F); Sea Level; dry air; atmospheric pressure; no solar loading
