Alinco DR-B185HT

$165.00
Alinco DR-B185HT SKU: ZAL-DR-B185HT

$165.00

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

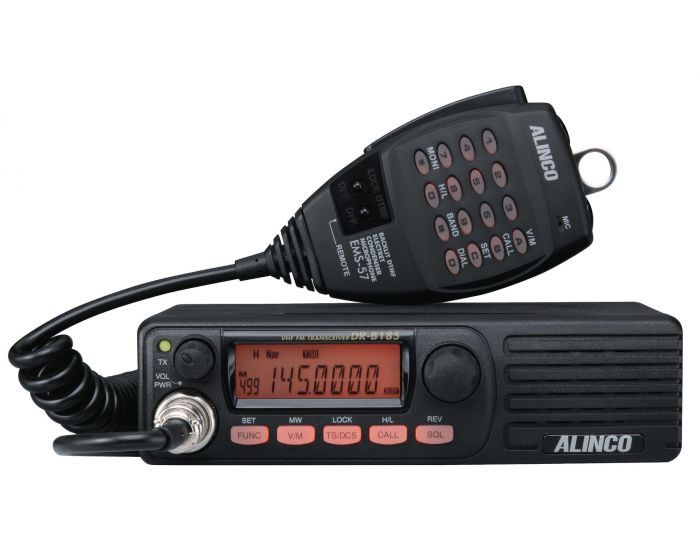

Alinco DR-B185T 2M Mobile Transceiver, 85W

The DR-B185 in its compact package is loaded with high technology features: high stability PLL synthesizer, newly designed power circuit that puts 85W max Power out, 7-digit alphanumeric display, a wide variety of scanning features, just to name a few. Yet the operation is intuitive and simple with user-friendly configuration. Using a high-tech, high-powered radio is this simple!

Features:
85 watts, H/L power settings
500 memory channels
Front panel Speaker
Wide and Narrow FM modes
39 tone CTCSS/DCS/2-Tone encode and decode
Offset direction and frequency variable
Keypad lockout/ Revere function
TIME-OUT-TIMER, BCLO and AUTO POWER OFF
TONE-BURST tones/ AUTO-DIALER
S-METER squelch
Cable cloning
Specifications
Genaral DR-B185HT/HE
Frequency coverage
DR-B185HT


DR-B185HE

TX:144.000 - 147.995MHz
RX:136.000 - 173.995MHz

TX/RX:144.000 - 145.995MHz
Operating mode16k0F3E (FM/wide)/11k0F3E (FM/narrow)
Antenna impedance50ohm unbalanced
Frequency stability+/- 2.5ppm
Power supply requirement13.8V DC +/- 15% (11.7 to 15.8V DC)
Ground methodNegative ground
Current drainReceiver: 1.0A (max.) / Transmit: 20A
Operating temperature-10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection)164 x 44 x 183.6 mm
6.44 x 1.73 x 7.21 inches
Weight1.5Kgs / 3.31lbs
Transmitter
Power Output85W High / 5W Low
Modulation systemFM: Reactance modulation
Spurious emissionLess than -50dB
Unwanted sidebandMore than 50dB(1KHz)
Maximum FM deviation+/- 2.5 KHz
Receiver
Receive systemDouble-conversion superheterodyne
SensitivityWide: Less than 0.25uV, Narrow: Less than 0.25uV
Intermediate frequency1st IF 45.1MHz, 2nd IF 450 KHz
Adjacent Channel SelectivityWide: More than 70dB, Narrow: More than 60dB
Spurious and image rejection ratioMore than 65dB
Audio output powerMore than 2.0W(8ohm 10%THD)
