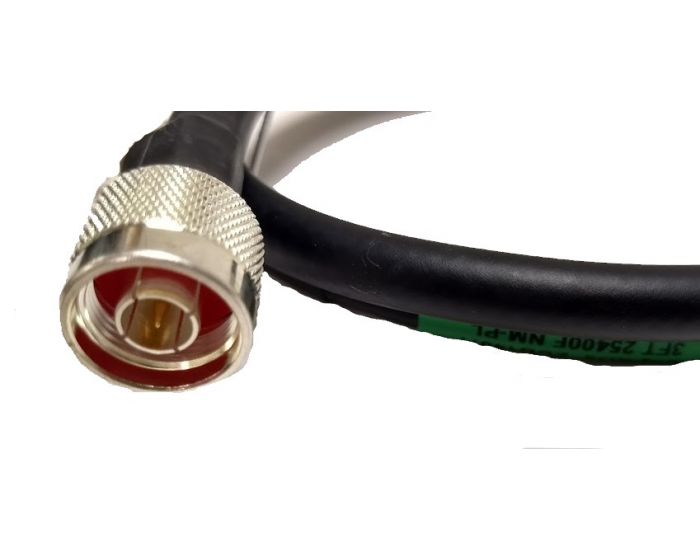

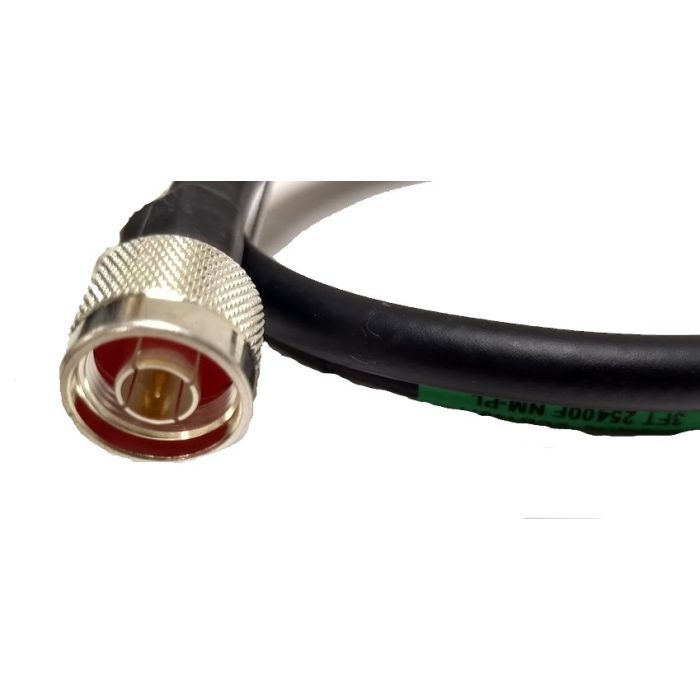

ABR400-Ultra Flex 3.0' w/ N Male Plugs WP-HST Both Ends and Weather-Proof HST 25400F-NM-3
SKU
ZCB14132-N
$29.99
Ready to Ship!
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:
3.0' 25400F w/ N Male Plugs WP-HST Both Ends and Weather-Proof HST
Closed Cell Polyethylene Dielectric.
84% Velocity of Propagation.
Very Flexible Moisture Proof.
Double Shield. (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket.
Attenuation @ 100ft/Pwr/Efficiency.
0.5dB @ 10MHz.4.83kW.90% E.
0.8dB @ 30MHz.2.77kW.83% E.
1.1dB @ 50MHz.2.14kW.78.5% E.
1.8dB @ 150MHz.1.22kW.65.4% E.
3.3dB @ 450MHz.0.69kW.47.3% E.
RoHS Compliant. Made in America
Applications:
Super-Flexable.
Rotatable Antennas.
Shield Effectiveness <90dB
Closed Cell Polyethylene Dielectric.
84% Velocity of Propagation.
Very Flexible Moisture Proof.
Double Shield. (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket.
Attenuation @ 100ft/Pwr/Efficiency.
0.5dB @ 10MHz.4.83kW.90% E.
0.8dB @ 30MHz.2.77kW.83% E.
1.1dB @ 50MHz.2.14kW.78.5% E.
1.8dB @ 150MHz.1.22kW.65.4% E.
3.3dB @ 450MHz.0.69kW.47.3% E.
RoHS Compliant. Made in America
Applications:
Super-Flexable.
Rotatable Antennas.
Shield Effectiveness <90dB
