ABR Industries 75ft LMR-400UF Coax Jumper Cable - 25400F-NM-75
Main imageClick to view image in fullscreen
calcActive())">
SKU:
ZCB14138
Availability:
Out of stock
This item is out of stock, but click the "Request Stock Alert" button above, and we'll notify you when it's back on the shelf!
Description

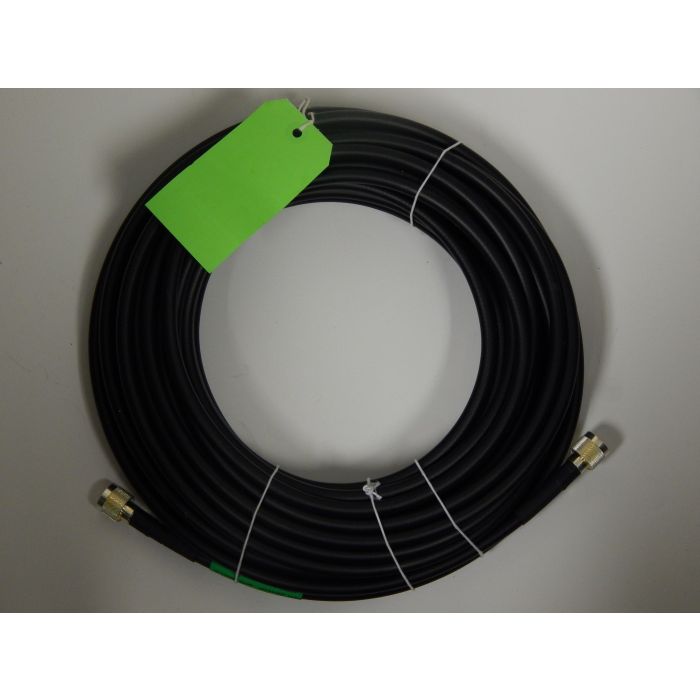

ABR Industries 75ft LMR-400UF Coax Jumper Cable - 25400F-NM-75
75' 25400F w/ N Male Plugs WP-HST Both Ends and Weather-Proof HST
Closed Cell Polyethylene Dielectric.
84% Velocity of Propagation.
Very Flexible Moisture Proof.
Double Shield. (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket.
Attenuation @ 100ft/Pwr/Efficiency.
0.5dB @ 10MHz.4.83kW.90% E.
0.8dB @ 30MHz.2.77kW.83% E.
1.1dB @ 50MHz.2.14kW.78.5% E.
1.8dB @ 150MHz.1.22kW.65.4% E.
3.3dB @ 450MHz.0.69kW.47.3% E.
Applications:
Super-Flexable.
Rotatable Antennas.
Shield Effectiveness <90dB
RoHS Compliant. Made in America
