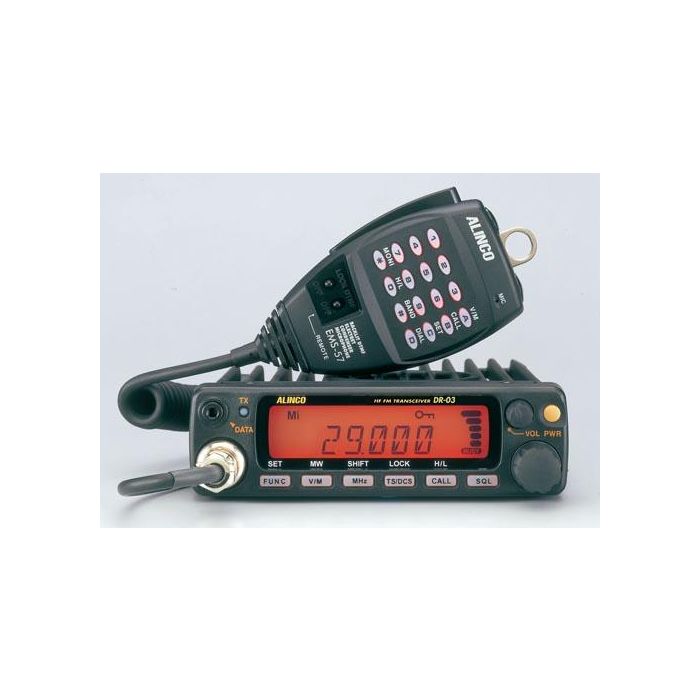

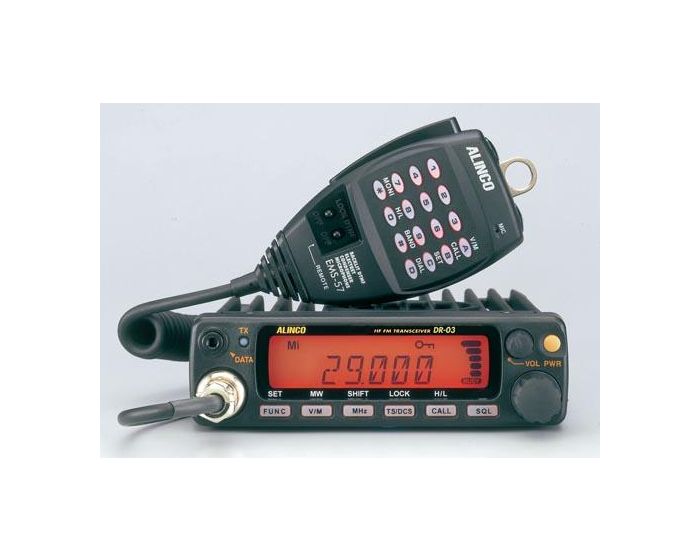

Alinco DR-03T 10m FM Mobile radio

SKU
ZAL-DR-03T
$239.95
Add to Wish List

This item is currently out of stock. We are not accepting backorders at this time.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

10m FM Mobile radio

  • Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
  • Same key-operations as DR-135-435 series mobile radios.
  • EJ-41U internal TNC board is available as an option for 1200/9600bps packet (DR-06T only), no need to remove mic for packet operation.
  • DR-03T 10 watts, H(10W)/M(5W)/L(2W) power settings.
  • DR-06T 50 watts, H(50W)/M(20W)/L(5W) power settings.
  • 100 memory channels.
  • Front panel data port (DR-06T only)
  • Rear panel DSUB9 computer connection (DR-06T only)
  • CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
  • Clean, clear Alinco audio
  • Super-wide 7 character alphanumeric display
  • Wide and narrow FM modes (16K0 & 8K50F3E / DR-03T is fixed for NFM)
  • Theft alarm feature
  • A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
  • Stays in mode you select (voice/packet) through power off cycles
  • Ten autodial memories
Frequency range:TX(T):
DR-03T: 28~29.695MHz
DR-06T: 50~53.995MHz
RX(T):
DR-03T: 28~29.695MHz
DR-06T: 40~69.995MHz
Operating modeDR-06T/16K0F3E (FM)/8K50F3E (NFM)
DR-03T/8K50F3E (NFM)

F1(9600bps)/F2(1200bps)/10F3 optional with EJ-41U/EJ-47U on DR-06T
Channel steps5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel100 channels + 1 quick recall (CALL)
Antenna impedance50ohm unbalanced
Frequency stability+/- 7ppm
Power supply requirement13.8V DC +/- 15% negative ground
Current drainDR-06T:Approx. 11.0A TX High
DR-03T: Approx. 3.0A TX High
RX both models: Approx. 0.6A max
Usable temperature range-10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection)140(W) x 40(H) x 174(D) mm
5.59"(W) x 1.57"(H) x 6.85"(D)
WeightApprox. 1.0Kg (35.3oz)
Transmitter
Power Output
DR-06T / 03T
Approx. 50W / 10W(HI)
Approx. 20W / 5W(MID)
Approx. 5W /2W(LOW)
Modulation systemVariable reactance frequency modulation
Spurious emissionLess than -40dB
Maximum frequency deviation+/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
Receive systemDouble-conversion superheterodyne
Sensitivity (-12dB SINAD)Less than -12.0dBu
Intermediate frequency1st IF 10.7MHz, 2nd IF 450 KHz
Selectivity-6dB: +/-12KHz or more (FM)
-60dB: +/-28KHz or less
-6dB: +/-6KHz or more (NFM)
-60dB: +/-16KHz or less
Audio output powerMore than 2.0W(8ohm 10%THD)
Optional Accessories
MicrophonesEMS-53 Plain microphone
EMS-57 DTMF/Remote microphone
Digital voice unitDR-06T only / EJ-47U
TNC unitDR-06T only / EJ-41U
DC Power supplyDM330MVT (120VAC) 30A switching
DM330MVE (240VAC) 25A switching
