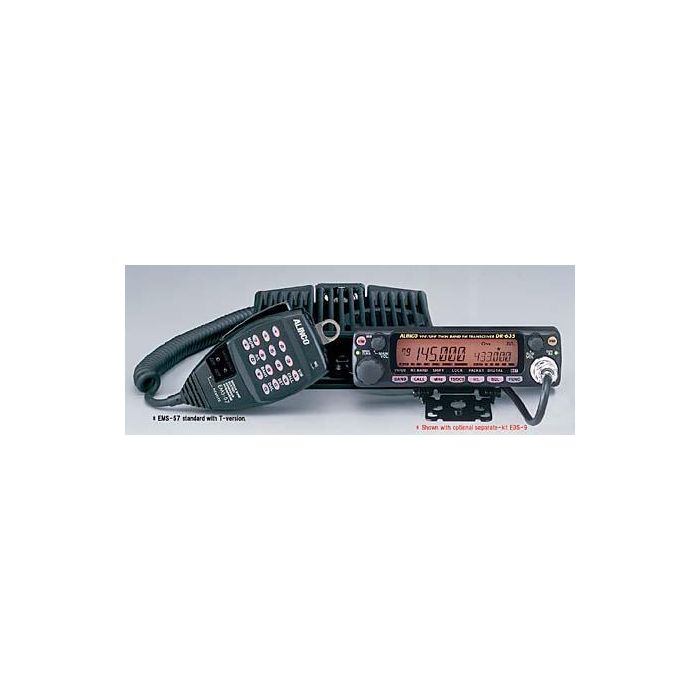

Alinco DR-635T

$289.00
Alinco DR-635T SKU: ZAL-DR-635T

$289.00

Free Shipping!

This item has been discontinued by manufacturer. Please look to the DR-735T as a replacement.

Check Store Stock

Huntsville Store:

Las Vegas:

2m/70cm Mobile radio, 50W/35W

VHF/UHF full duplex operation includes V/U and U/V modes.
Cross-band repeater function (where permitted: standard on DR-635T)
200 Memory channels
H/M/L power output settings- VHF: 50/25/5W UHF: 35/20/5W
Large 6 character alphanumeric display
Selectable display color illumination (Blue, Violet or amber) Internal duplexer - single antenna connector
Removable control head can be remotely mounted or allow transceiver to be inverted for optimal speaker placement Expanded receive range includes FM broadcast band (WFM)
Power supply voltage display
Theft alarm feature
Optional 1200 and 9600 bps packet operation with optional EJ-50U
Digital voice communications with optional EJ-47U Optional illuminated DTMF EMS-57 microphone (included with DR-635T) allows direct VFO frequency entry and remote control of transceiver
CTCSS & DCS encode and decode plus four different tone bursts
CTCSS Tone and DCS scan Programmable VFO and Memory scan modes
"Time Out" timer Cable Clone feature
AM Aircraft band reception (DR-635T only)
Temperature Compensated Crystal Oscillator
Ignition key activated power on/off feature
Genaral
Frequency range:TX: USA
VHF 144-147.995 MHz
UHF 430-449.995 MHz
TX: European
VHF 144-145.995 MHz
UHF 430-439.995 MHz
RX: USA
108-173.995 MHz
335-479.995 MHz
87.5-107.995MHz
RX: European
144-144.995 MHz
430-439.995 MHz
87.5-107.995MHz
Modulation:16K0F3E(FM)/8K50F3E(Narrow FM)/F1E(digital voice)/F1D(9600bps)/F2D(1200bps)/A3E(RX only/AM)
Channel steps:5, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100 KHz
Memory channel:VHF 80ch / UHF 80ch / Free-programmable 40ch / 1ch VHF CALL / 1ch UHF CALL
Antenna impedance:50ohm unbalanced
Frequency stability:+/- 2.5ppm
Power Supply Requirement:13.8V DC +/- 15% Negative ground
Current Drain:Approx. 11A TX high / 700mA RX max. / 500mA RX squelched
Operating temperature:-10digC to +60digC (+14digF to 140digF)
Dimensions (w/o projection):140(W) x 40(H) x 185(D) mm
5.5"(W) x 1.6"(H) x 7.3"(D)
Weight:Approx. 1.0Kg (35.3oz)
Transmitter
Power Output:High VHF 50W / UHF 35W, Mid 20W, Low 5W(approx.)
Modulation system:Variable Reactance Frequency Modulation
Spurious emission:Less than -60dB
Maximum frequency deviation:+/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
Receive system:Double-conversion superheterodyne
Sensitivity (-12dB SINAD):Main band -14dBu(0.20uV) or better
Sub band -12dBu(0.25uV) or better
Intermediate frequency:1st 21.7MHz/450KHZ
2nd 45.1MHz/455KHz
Squelch:-18.0 dBu (0.1 uV) or less
Selectivity:FM: -6dB: 12KHz or more, -60dB: 28KHz or less
Audio output power:2.0 W (8 ohm, 10% distortion)
