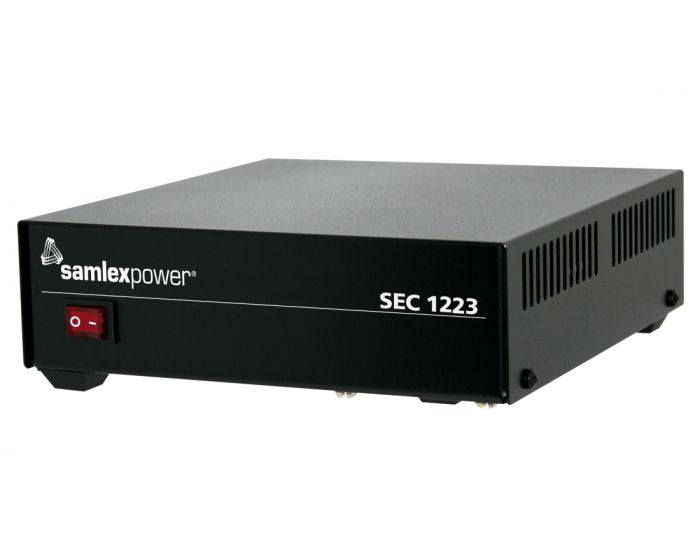

Samlex 23A Switching Power Supply
This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.
Features:
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- Input voltage can be set at 120VAC or 240VAC
- UL listed to both USA & Canadian safety standards
Specifications:
- Input: 100-130 VAC
- Output: 13.8VDC
- Amps: 23 Amps
- Fuse: 6.3 Amps
- Weight: 3.5 (lbs)
- Weight 1.58 (kg)
- Dimensions: 8.18 x 7.28 x 2.4 (in)
- Dimensions: 20.8 x 18.5 x 6.1 (cm)
- Safety: UL, FCC
- Warranty: 3 Years
Applications:
- Two way radio base stations
- Communications systems
- Security systems
- Test equipment
- Plotters
- GPS receivers
- Automotive & Marine displays
- DC computers
- 12 Volt lighting systems
- OEM applications
