Bioenno Power Lithium Iron Phosphate LiFePO4 Battery BLF-1220AS
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1220AS is a state-of-the-art 12V 20Ah battery. Meeting and exceeding the power of a 12V 40Ah SLA at only 7 lbs. for our unit as opposed to 33 lbs. for an SLA, this AS variant offers reliable quality performance in a standard ABS form factor designed to be the ultimate drop-in solution. Ideal for hard use, this ABS version has seen extensive use in science, powering critical avionics on sail planes with additional applications covering e-bikes, e-scooters, radio communications and audio-visual. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 4A with Alligator Clips.
Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.
BLF-1220AS Battery Specifications
- Voltage: 12V
- Capacity: 20Ah
- Case Type: ABS Sealed
- Charge/Discharge Connector: Screw Terminal
- Maximum Continuous Discharge Current: 40A
- Maximum Peak Discharge Current: 60A (5 sec.)
- Max Power Delivered to Load at 12V: 480 Watts (12V x 40A = 480 Watts)
- Dimensions: 7.2 in. x 3.2 in. x 6.7 in. (182 mm x 77 mm x 171 mm)
- Weight: 5.8 lbs. (2.6 kg)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry Available 110VAC / 220 VAC Charger

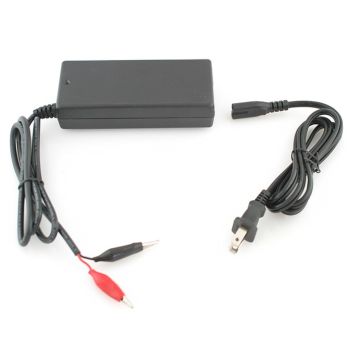

Compatible AC-to-DC Charger Specifications
- Input Voltage: 110VAC/220VAC
- Output Voltage: 14.6VDC
- Current: 4A
- Connector: Alligator Clips
- Model Number: BPC-1504C
