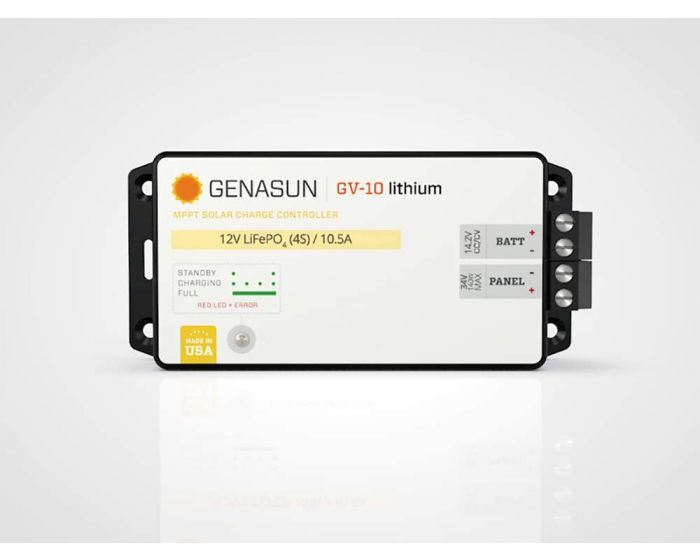

Genasun 10A MPPT Solar Charge Controller for LiFePO4 Batteries
Overview
You paid for a 140 Watts solar panel, get your money’s worth. The GV-10 extracts more power from any given panel than a PWM controller or other MPPT controller. PWMs may offer a lower controller cost, the GV-10 MPPT controller delivers more power reducing the cost per watt by 10-30%. The GV-10 is the ultra-high-speed MPPT solar controller.
Features:
- MPPT BUCK technology
- LED indicator for battery state of charge
- 98.3% Peak Efficiency
- High-speed MPPT Tracking (15 times per sec)
- Advanced electronic protection (over-temperature, panel overload, battery and panel switched, reverse battery polarity, reverse panel polarity)
- Advanced 2-stage charge profile for 4S LiFePO4
- Tiny self-consumption
- Radio Silence, HAM Radio friendly
- Made in the USA
- 5-Year Warranty
Specifications:
- Max. Recommended Panel Power: 140 W
- Rated Battery (Output) Current: 10.5 A
- Charge Voltage CC/CV 14.2V (3.55 V per cell)
- Max Panel Voltage: 34 V
- Max. Recommended Panel Voc at STC: 27 V
- Min. Battery Voltage for Operation: 8.5 V
- Operating Temp. Range: -40 °C - 85 °C
- Night Consumption: 0.9 mA
- Environmental Protection: IP40, Conformal Coating, Nickel-Plated Brass & Stainless Hardware
- Connection: 4-position terminal block for 10-30 AWG wire
- Weight: 6.5 oz., 185 g
- Dimensions: 5.5" x 2.5" x 1.29"
- Certifications: cETLus, Class 1 Div.2, CE , FCC, RoHS
