Hy-Gain Vertical Antenna, 10/12M Super Penetrator 1.5kW - SPT-500

No free freight
SKU
ZHY-SPT-500
$259.98
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

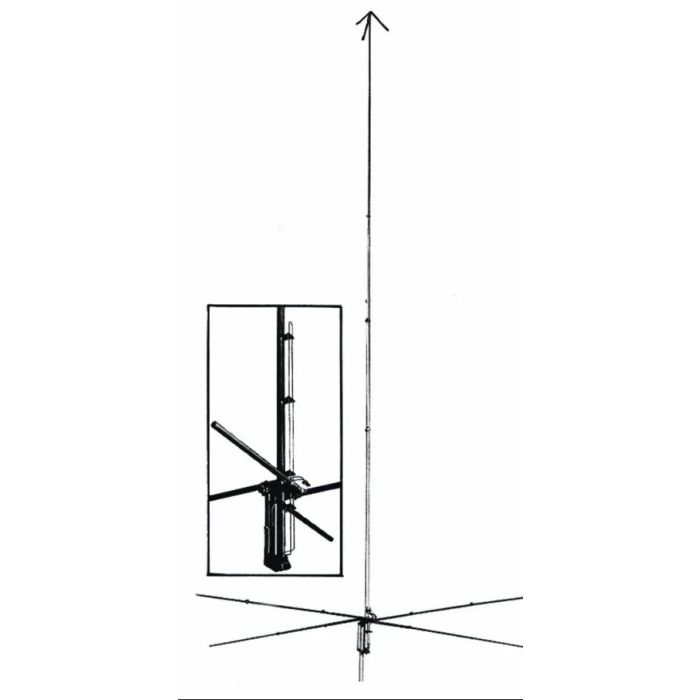

Hy-Gain 10/12m Super Penetrator Vertical Antenna

5.3dB gain, 22ft tall, radials are 8'-9" long, accepts mast 1-1/4" to 1-5/8" in diameter.Rated to survive winds up to 80mph.

This fantastic true full-size 5/8 Wave 10 / 12 Meter vertical antenna from Hy-Gain was a legend in the 70’s . . . now it’s back to prove its legendary status once again!

A Full-size radiator with lower radiation angle concentrates power closer to the ground, where you want it. Measures 22 foot, 9.5 inches. Larger diameter, heavy wall ply-tubular construction makes the new Super-Penetrator™ the absolute top omnidirectional antenna around! Four full-length radials and special machine-formed brackets give extra talk-power and overall strength.

Electrical performance has been increased to a new standard by the use of a longer radiator and double-matching tuning with linear phasing techniques that provide low SWR and more radiated energy. The double-matching also provides a DC path to ground to drain off precipitation static, giving an extremely low noise antenna capable of high power.

SPT-500 is specifically designed to accept AM-FM-SSB-DSB signals with low loss. Handles 1.5 killowatts. This antenna is illegal for 11 Meters use.

SPT-500 Antenna Specifications:
  • Gain (dB): 5.3dB
  • SWR (at resonance): Less than 1.2:1
  • Nominal Input Impedance: 52 Ohms
  • Lightning Protection: DC Ground
  • Height: 22'6"
  • Radial Length: 8'9"
  • Wind (Survival): 80 MPH
  • Accepted Mast Size: 1 1/4" to 1 5/8" OD

**DOES NOT QUALIFY FOR FREE FREIGHT**
Please be advised: The shopping cart estimate isn't able to take into account the oversize dimensions of this package and may inaccurately show $0.00. Within 24 hours of placing your order, we will obtain the oversize dimension fee from UPS and notify you.
SPT-500 Antenna Specifications
Gain (dB) 5.3 dB
SWR (at resonance) Less than 1.2:1
Nominal input impedance 52 Ohms
Lightning Protection DC Ground
Height Twenty-two feet, six inches
Radial Length Eight feet nine inches
Wind (Survival) 80 MPH
Accepted mast size 1 ¼” to 1 ⅝” OD
