Description
Mobile radio, 23cm, 10W, D-STAR

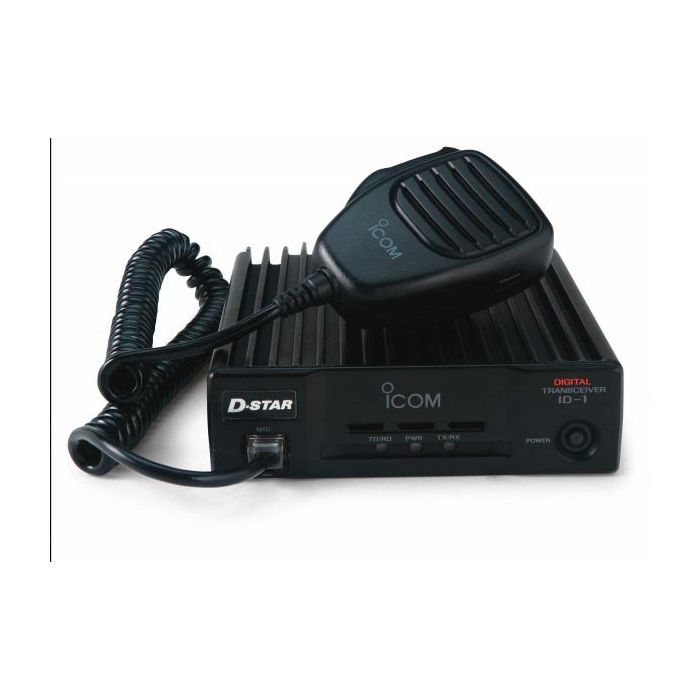

The Icom ID-1 1.2GHz transceiver is a vital part of the D-STAR system & doesn't require a D-STAR repeater to be set-up in your area. The Icom ID-1 operates with current 1.2GHz analog repeaters, plus simplex digital operation with another ID-1 using DD Mode. The operating frequency range of the ID-1 is 1240-1300 MHz, with FM and GMSK (Digital) modulation formats. The Icom ID-1 has 105 alphanumeric memory channels, PLUS full PC control via the USB cable.
Features
PC remote controller supplied
The controller software is supplied with the ID-1. When the ID-1 is connected to a PC via a USB cable, most functions of the ID-1 can be controlled from the PC. In DD mode operation*, you can browse web sites and send and receive e-mail as if the ID-1 is a 10W wireless network adapter.
* Ethernet port is required for DD mode operation.
Useful callsign functions
The ID-1 embeds your own and the called station?s callsign in your transmission. When you input ?CQCQCQ? as the intended station, you can make a CQ call in the area. The calling station?s ID is displayed on the received station and a newly received callsign can be automatically stored in the memory.
Digital callsign squelch (DSQL) & Digital code squelch (CSQL)
The DSQL opens the squelch, only when your callsign is received. When you share a single callsign with a club or group members, the CSQL function allows you to set a CSQL code from 00 to 99 and provides quiet stand-by while other members are talking.
EMR mode operation
When you require the attention of all stations in the area, the Enhanced Monitor Request (EMR) mode operation allows the caller to bypass the CSQL and DSQL setting of the receivers station. During EMR mode operation, all receiving stations will hear your audio, even though they may be muted.
Short message in DV mode
Short messages of 20 characters max. can be sent in DV mode operation.
Analog FM mode operation
The ID-1 also operates in analog FM mode, allowing you to communicate with an analog FM transceiver. In FM mode operation, the ID-1 has CTCSS tone squelch and pocket beep functions for quiet stand-by.
Other features
- 950bps (approx.) data communication capability in DV mode
- AFC (Automatic Frequency Control) function*
- S-meter squelch
- Break-in communication
- Programmed, memory and select mode scan
- Stand-by beep
* FM and digital voice only.
Includes
ID-1 Transceiver
RC-24 Remote Control Head
Microphone
Ethernet Cable Coupler
USB Extension Cable
Ethernet Cable
External Speaker
DC Power Cable
