6 mm, 100 Meter MASTRANT-P Braided Rope w/Twisted Core
Mastrant-P with a diameter of 4-6mm is the ideal solution for the multi-level guying of an antenna mast (up to 30ft.) supporting a three element tri-bander or a long VHF Yagi (with a mast diameter of 2 to 4”). Consider using Mastrant-M in the 4mm diameter when maximum elongation must be kept to a minimum such as high angle guying or if you want to upgrade due to high wind conditions, taller antennas or an extra margin of safety.
New type of guywire optimized for guying with respect to maximized "performance/price" rate. This excellent rope offers very good strength, low elongation, high UV and humidity resistance. It has low weight, great abrasion resistance, great durability and is electrically insulating. Moreover, in contrast to ropes made from aramid fibres (Kevlar, Vectran, Technora, Twaron), it has knot strength almost 60 %! Due to these properties, MASTRANT is exceptionally suitable for all kinds of guying.

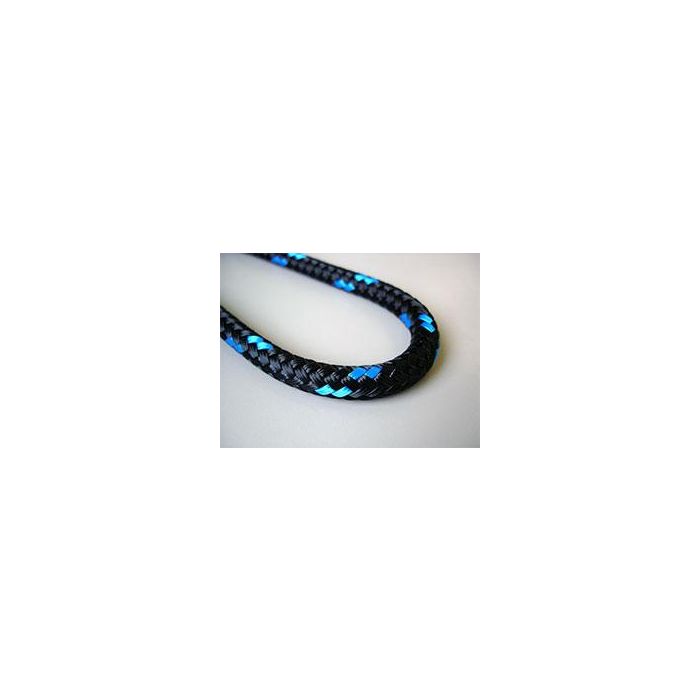

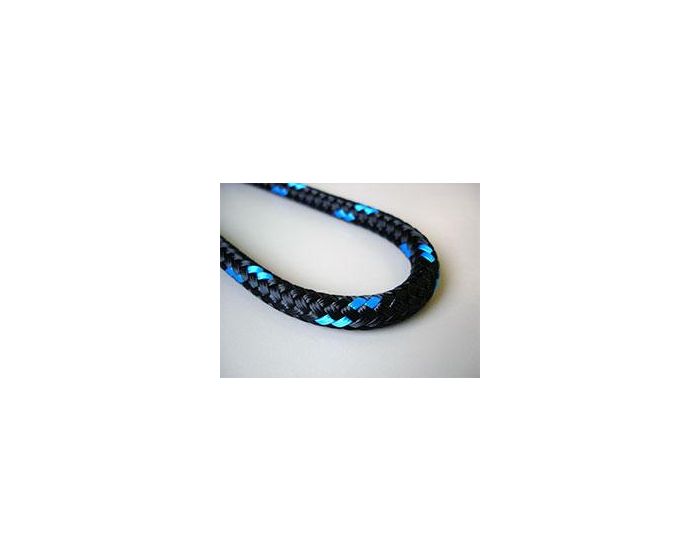

Construction: Braided rope with twisted cores
Core: Polyester, parallel-arranged twisted cores
Cover: Polyester 12 or 16 (depending on the diameter)
Thickness: 6mm / 1/4 in.
Tensile Strength: 850kg / 1870 lbs
Safe Work Load: 255kg / 562 lbs
Spool Length: 100m / 328 ft.
