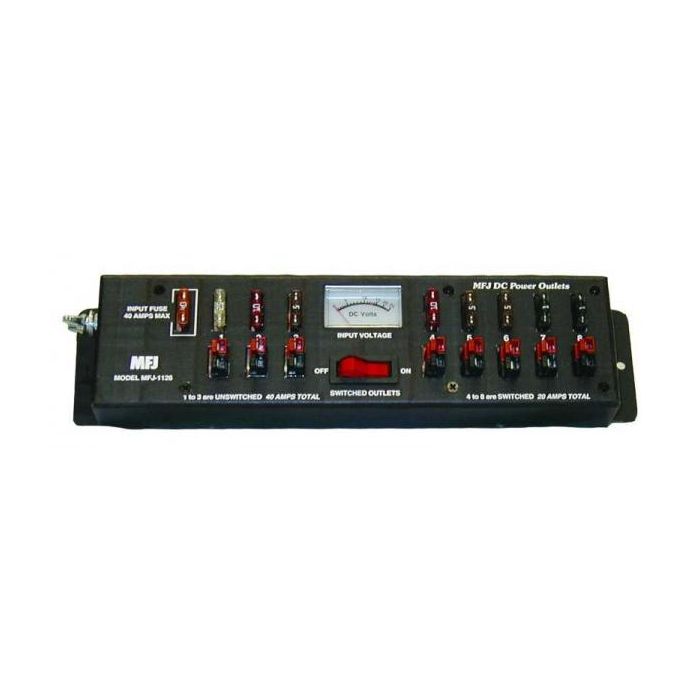

MFJ-1126 8 Way PowerPole Distribution Block DC Power Outlet
MFJ-1126 DC Multiple Power Distribution Outlet Panel
MFJ DC Multiple Outlet Panels
8 Way PowerPole Distribution Block - with On/Off Switch and Voltmeter - 40 Amps Total
MFJ DC Multiple Outlet Panels are power distribution strips that are used in ham shacks and on test benches around the world. They provide multiple high and low current DC outlets for transceivers and accessories from your main power supply. Using a proper outlet panel keeps your cabling neat, organized and safe! Using outlet panels prevents fire hazards by keeping wires from tangling up and shorting out.
MFJ DC Multiple Outlet Panels are available featuring super heavy-duty 5-way binding posts for high-current banana plugs and/or Anderson PowerPole® connectors, the genderless, polarized and color-coded connectors that are the 12 Vdc standard for ARES and RACES emergency stations.
Also available are MFJ strips that include low power binding posts, or switched outlets, DC meters, and LED indicators. All panels offer mounting ears, wing nut grounding posts, and RF shielding with RF bypassed outputs. mfjpowerdistribution
Michael Brigmond Channel Manager MFJ GigaParts 02/15/2023
MFJ DC Power Strip
8 outlets. Factory installed fuses: two 1A, three 5A, two 10A, one 25A, one 40A. Includes 6 pair of AndersonPowerPole® 12 35A contacts and 5 fuses: (1 ea. 1,5,10,25,40).
9W x 1 1/4 H x 2 3/4 inches.
|Manufacturer's Part Number:||MFJ-1126|
|Part Type:||DC Multiple Outlet Panels|
|Product Line:||MFJ DC Multiple Outlet Panels|
|High Current Maximum:||40 A|
|High Current Power Poles:||Yes|
|High Current Power Pole Outputs:||1|
|High Current Binding Posts:||No|
|Low Current Output On/Off Switch:||Yes|
|Low Current Power Poles:||Yes|
|Low Current Power Pole Outputs:||5|
|Low Current Binding Posts:||No|
|Audible Voltage Alarm:||No|
|Programmable Fault Thresholds:||No|
|Input Cable Installed:||Yes|
|Individually Fused Outputs:||Yes|
|Combined Fused Outputs:||No|
|Outlet Panel Width:||9.000 in.|
|Outlet Panel Height:||1.250 in.|
|Outlet Panel Depth:||2.750 in.|
