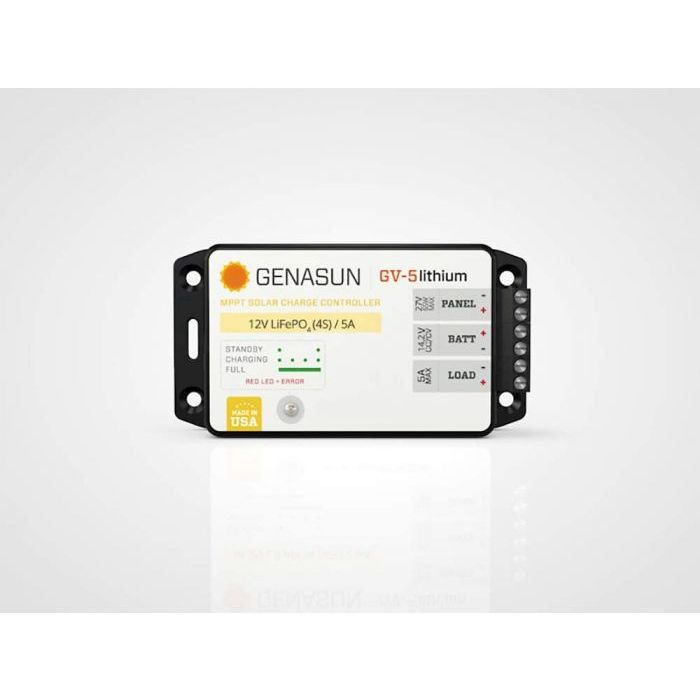

Open Box Genasun 5A MPPT Solar Charge Controller for LiFePO4 Batteries SN165250
Overview
Mission-Critical Reliability: Genasun controllers are deployed to the most remote locations on earth. They endure years at sea, harsh Antarctic winters, freezing conditions in the upper atmosphere on solar powered airplanes, and in a few off-the-map locations. Genasun’s Ceramic controllers set a new benchmark for reliability. If you need mission-critical power, this is your controller.
Features:
MPPT BUCK technology
DC Output Load with Low Voltage Disconnect (LVD)
LED indicator for battery state of charge
99.85% Peak Efficiency
High-speed MPPT Tracking (15 times per sec)
Advanced electronic protection (over-temperature, panel overload, battery and panel switched, reverse battery polarity, reverse panel polarity, load short circuit)
Advanced 2-stage charge profile for 4S LiFePO4
Tiny self-consumption
Radio Silence, HAM Radio friendly
Made in the USA
10-Year Warranty
Specification:
Max. Recomm. Panel Power: 65 W
Rated Battery (Output) Current: 5 A
Continuous Rated Load Current: 5 A
Max Panel Voltage: 27 V
Max. Recomm. Panel Voc at STC: 22 V
Min. Battery Voltage for Operation: 7.2 V
Trickle Charge to Recover Dead (0V) Battery: Yes
Charge Voltage CC/CV 14.2V (3.55 V per cell)
Load Disconnect/Reconnect Voltage: 11 V / 12 V
Operating Temp. Range: -40 °C - 85 °C
Electrical Efficiency: 96-99% typical
Operating consumption: 0.150 mA
Night Consumption: 0.125 mA
Environmental Protection: IP40, Conformal Coating, Nickel-Plated Brass & Stainless Hardware
Connection: 4-position terminal block for 12-30 AWG wire
Weight: 2.8 oz., 80 g
Dimensions: 4.3" x 2.2" x 0.9"
Certifications: CE, FCC, RoHS
