Genasun 5A MPPT Solar Charge Controller for LiFePO4 Batteries

SKU
ZGN-5A-LI-14V
$99.95
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

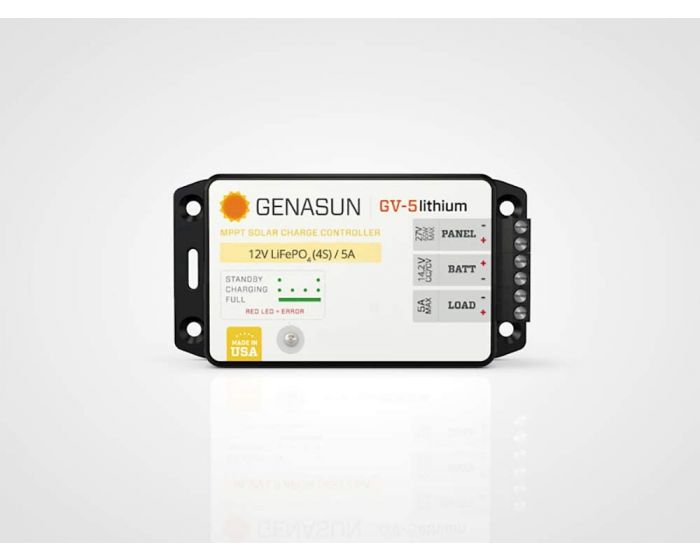

Genasun 5A MPPT Solar Charge Controller for LiFePO4 Batteries



Overview
Mission-Critical Reliability: Genasun controllers are deployed to the most remote locations on earth. They endure years at sea, harsh Antarctic winters, freezing conditions in the upper atmosphere on solar powered airplanes, and in a few off-the-map locations. Genasun’s Ceramic controllers set a new benchmark for reliability. If you need mission-critical power, this is your controller.

Features:

    • MPPT BUCK technology
    • DC Output Load with Low Voltage Disconnect (LVD)
    • LED indicator for battery state of charge
    • 99.85% Peak Efficiency
    • High-speed MPPT Tracking (15 times per sec)
    • Advanced electronic protection (over-temperature, panel overload, battery and panel switched, reverse battery polarity, reverse panel polarity, load short circuit)
    • Advanced 2-stage charge profile for 4S LiFePO4
    • Tiny self-consumption
    • Radio Silence, HAM Radio friendly
    • Made in the USA
    • 10-Year Warranty

Specification:

  • Max. Recomm. Panel Power: 65 W
  • Rated Battery (Output) Current: 5 A
  • Continuous Rated Load Current: 5 A
  • Max Panel Voltage: 27 V
  • Max. Recomm. Panel Voc at STC: 22 V
  • Min. Battery Voltage for Operation: 7.2 V
  • Trickle Charge to Recover Dead (0V) Battery: Yes
  • Charge Voltage CC/CV 14.2V (3.55 V per cell)
  • Load Disconnect/Reconnect Voltage: 11 V / 12 V
  • Operating Temp. Range: -40 °C - 85 °C
  • Electrical Efficiency: 96-99% typical
  • Operating consumption: 0.150 mA
  • Night Consumption: 0.125 mA
  • Environmental Protection: IP40, Conformal Coating, Nickel-Plated Brass & Stainless Hardware
  • Connection: 4-position terminal block for 12-30 AWG wire
  • Weight: 2.8 oz., 80 g
  • Dimensions: 4.3" x 2.2" x 0.9"
  • Certifications: CE, FCC, RoHS
