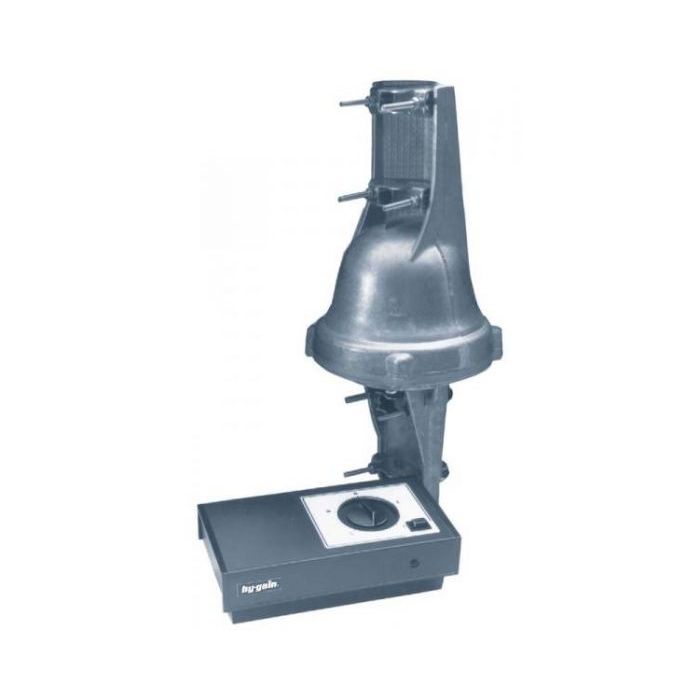

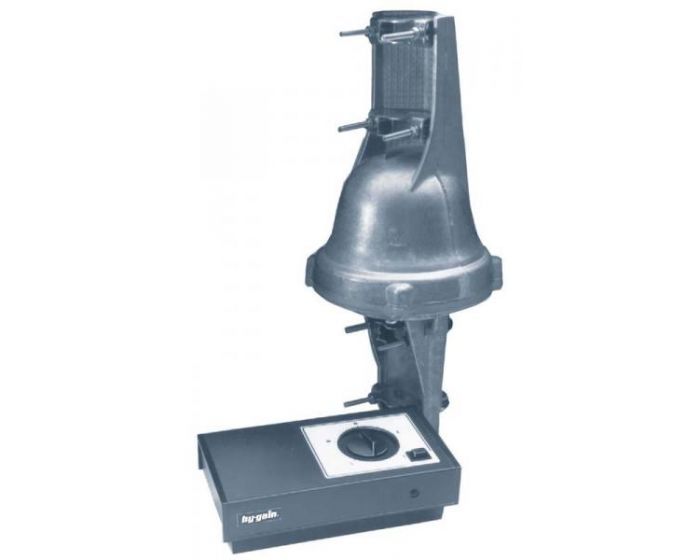

Open Box HyGain AR-40 Rotator for Beam/TV Antenna, 3SF SN162020
The AR-40 is for large FM-TV and compact communication antenna arrays up to 3 square feet wind load area. Dual 12 ball bearing race is exclusive to its class. Automatic position sensor never needs resetting. Fully automatic control -- just dial and touch for any desired location. Solid state, low voltage control, safe and silent operation. It has a maximum mast size of 2 1/16 inches. Includes MSLD light duty lower mast support. Operates at 110V.
Specifications:
Wind Load Capacity (inside tower): 3.0 sq ft
Wind Load (w/ Mast Adapter): 1.5 sq ft
Turning Power: 350 pounds
Brake Power: 450 pounds
- Brake Construction: Disc Brake
- Bearing Assembly: Dual race/12 ball bearings
- Mounting Hardware: Plated clamps/steel bolts
- Control Cable Conductors: 5
- Shipping Weight: 14 lbs
- Effective Movement (in tower): 300 ft/lbs.
