Hy-Gain AR40 Rotator for beam/TV antenna, 3 SqFt - AR-40

Add to Wish List
Ready to Ship!
Check Store Stock


Las Vegas:

Distribution Center:

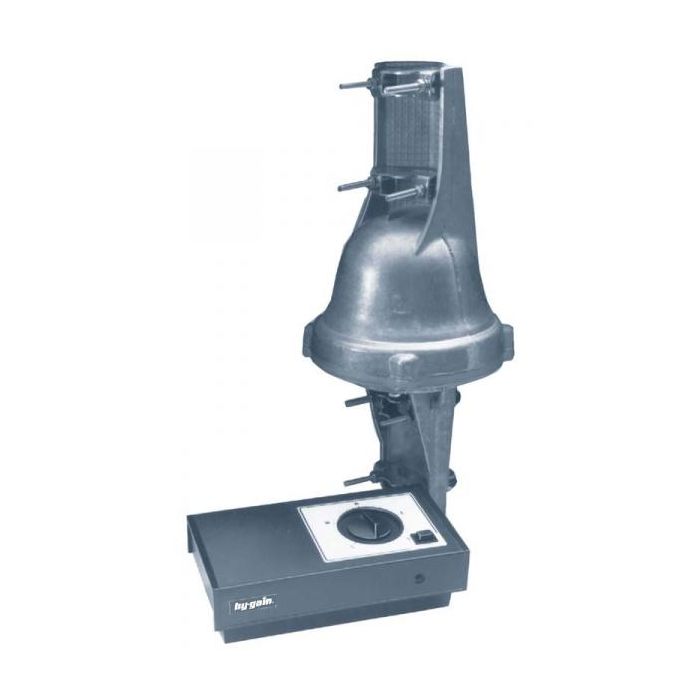

The AR-40 is for large FM-TV and compact communication antenna arrays up to 3 square feet wind load area. Dual 12 ball bearing race is exclusive to its class. Automatic position sensor never needs resetting. Fully automatic control -- just dial and touch for any desired location. Solid state, low voltage control, safe and silent operation. It has a maximum mast size of 2 1/16 inches. Includes MSLD light duty lower mast support. Operates at 110V.


  • Wind Load Capacity (inside tower): 3.0 sq ft
  • Wind Load (w/ Mast Adapter): 1.5 sq ft
  • Turning Power: 350 pounds
  • Brake Power: 450 pounds
  • Brake Construction: Disc Brake
  • Bearing Assembly: Dual race/12 ball bearings
  • Mounting Hardware: Plated clamps/steel bolts

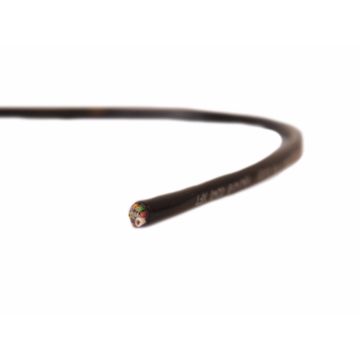

  • Control Cable Conductors: 5
  • Shipping Weight: 14 lbs
  • Effective Movement (in tower): 300 ft/lbs.
