Open Box MFJ-260C 300W Dry Dummy Load SN138440
Open Box MFJ-260C 300W Dry Dummy Load SN138440. Does not have original box.

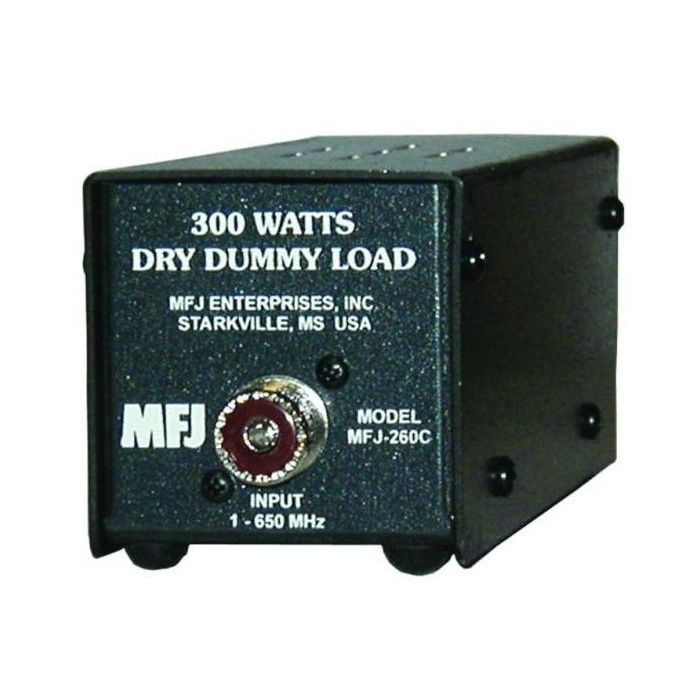

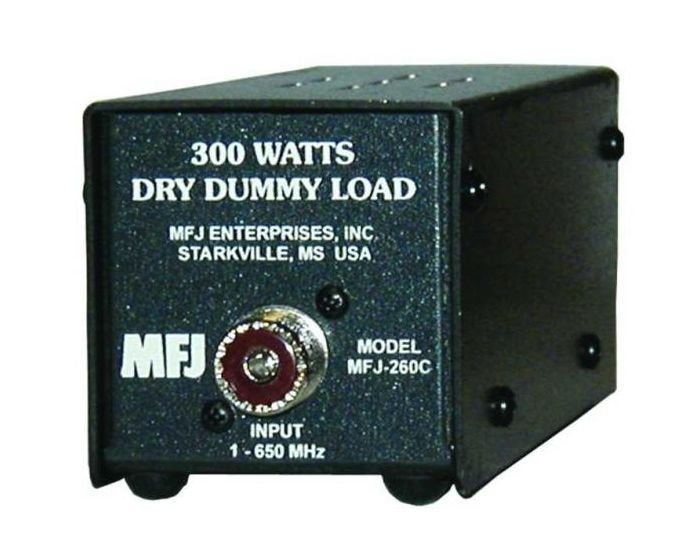

300W Dry Dummy Load
The MFJ-260C is an air cooled, non-inductive resistor in a perforated metal housing. It has SO-239 connectors. You can handle a full load for 30 seconds. Silk-screened derating curve to 5 minutes. Handles 300 Watts. SWR below 1.1:1 to 30 MHz, 1.5:1 from 30 to 650Mhz. It measures a super compact 2 1/4x2 1/4x7 inches.
- Impedance: 50 Ohms, ± 10 %
- VSWR: Max: 1.3:1, 0-650 MHz
- Max Power: 300 Watts for 30 seconds
- Dissipation: (2 min cooldown) 25 Watts continuous
- Dimensions: 2½" x 2½" x 7"
