MFJ-260C Dry Dummy load 0-650MHz 300W

SKU
ZMF-260C
$57.95
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

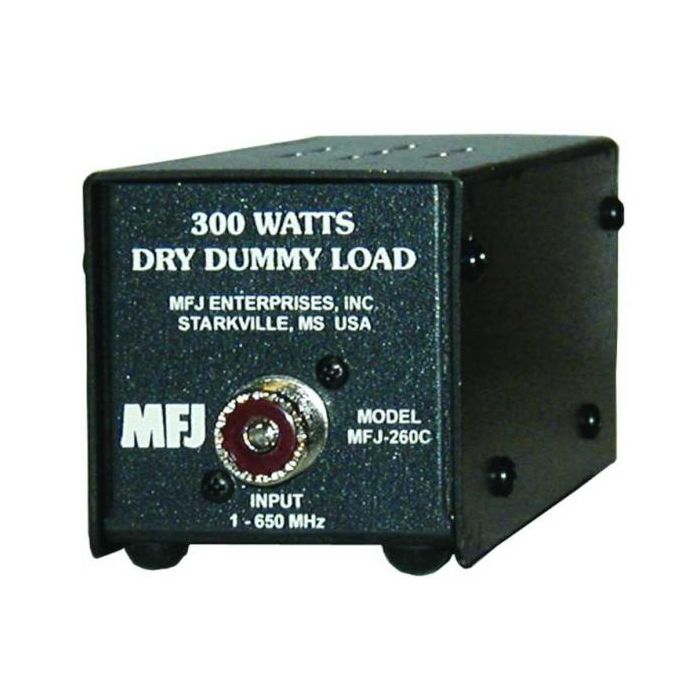

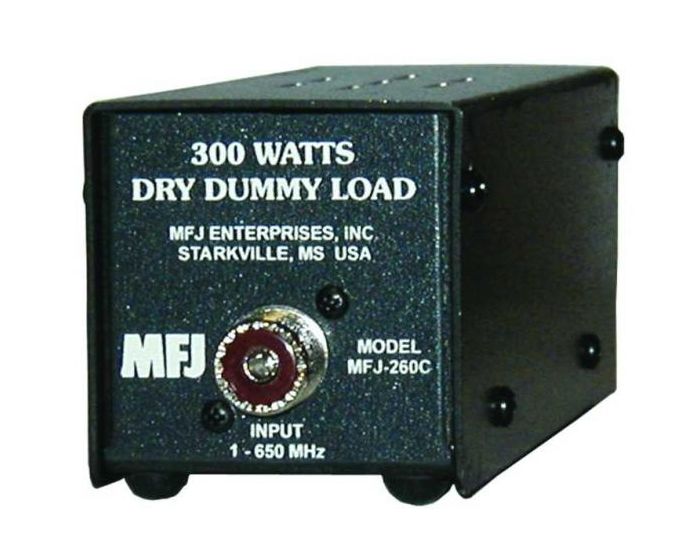

MFJ Dummy Load, 300 Watt, 0-650Mhz, Dry - MFJ-260C

Dry 300W 0-650 MHz Dummy Load


The MFJ-260C is an air cooled, non-inductive resistor in a perforated metal housing. It has SO-239 connectors. You can handle a full load for 30 seconds. Silk-screened derating curve to 5 minutes. Handles 300 Watts. SWR below 1.1:1 to 30 MHz, 1.5:1 from 30 to 650Mhz. It measures a super compact 2 1/4x2 1/4x7 inches.

Specifications

  • IMPEDANCE: 50 Ohms, ± 10 %
  • VSWR: Max: 1.3:1, 0-650 MHz
  • POWER: 300 Watts for 30 seconds
  • DISSIPATION: (2 min cooldown) 25 Watts continuous
  • DIMENSIONS: 2½" x 2½" x 7"

MFJ 260C Dummy Loads are air-cooled, non-inductive resistors in a perforated metal housing.

They feature SO-239 connectors and can handle their full-rated power for 30 seconds. MFJ 260C dummy loads are super-compact to save you valuable space. They have a silk screened de-rating curve to 5 minutes and an SWR below 1.1:1 to 30 MHz and 1.5:1 from 30 to 650 MHz.

Don't tune up on the antenna! Contain your signal with MFJ 260C Dummy Loads from GigaParts



Brand: MFJ
Manufacturer's Part Number: MFJ-260C
GigaParts Number: ZMF-260C
Part Type: Dummy Loads
Product Line: MFJ 260C Dummy Loads
Dummy Load Intermittent Power Rating: 300 watts
Dummy Load Connector Type: UHF female, SO-239
Dummy Load Type: Air cooled
Dummy Load Frequency Range: 0-650 MHz
Front Panel Display Meter: No
Dummy Load Width: 2.500 in.
Dummy Load Height: 2.500 in.
Dummy Load Depth: 7.000 in.
Quantity: Sold individually
UPC: 650619003222
