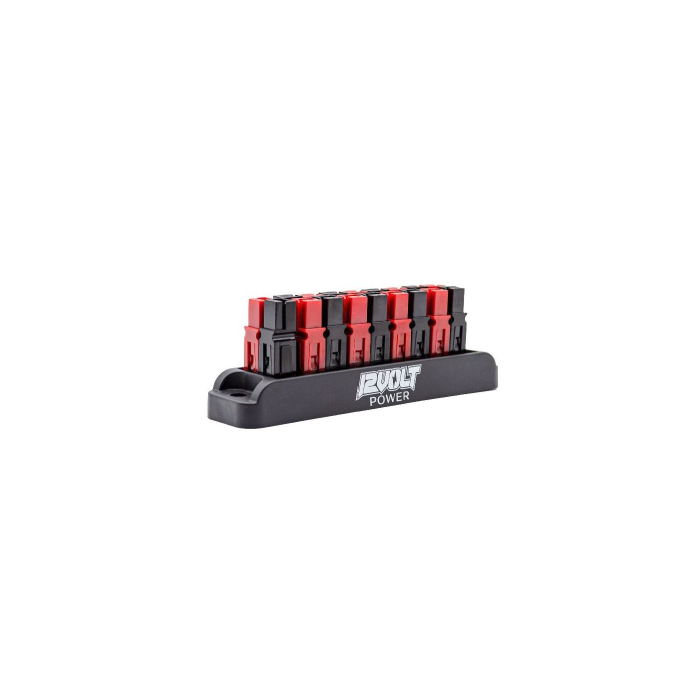

PD9-PLUS 9-Port PowerPole Distribution Block

This exciting new product allows you to connect up to (9) Powerpole connections with no voltage loss. Can be used with all 15A, 30A, and 45A Anderson Powerpole connectors.

PD9-PLUS FEATURES

• Up to 9 Powerpole Connection Ports, with a simple plug-n-play design
• Manufactured with Genuine Anderson Powerpole housings and contacts
• Heavy-duty Copper Bus Bar material connects all ports with no voltage loss
• Compact and Mountable for cleaner installations
• Compatible with all 15/30/45A Anderson Powerpoles (mix & match ok)
• Maximum Continuous Amps: 50A (total all ports), Maximum Voltage: 48VDC
• Heavy Duty Construction with Sealed Potted Bus bars
• Dimensions: 4.1” L x 0.9” W x 1.3” H (Base mounting hole spacing 3.6”)
