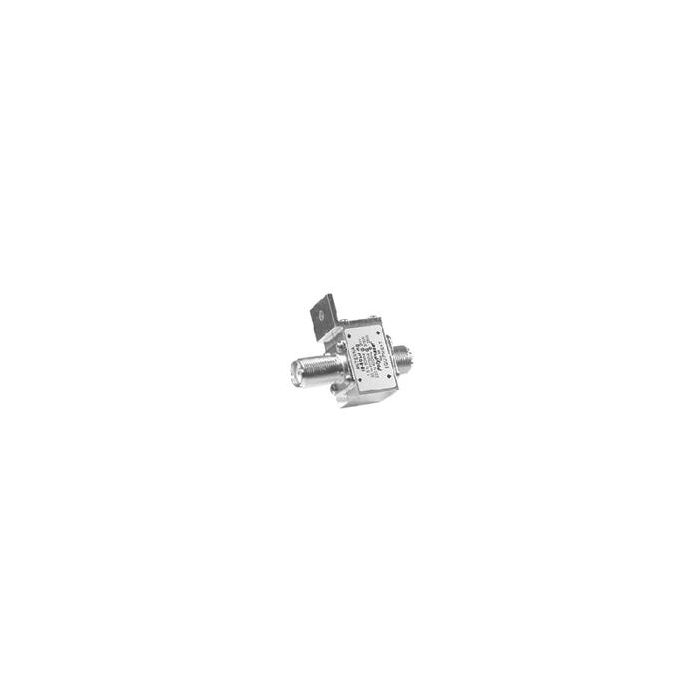

Polyphaser IS-B50LU-C0

PolyPhaser Bulkhead Arrestor, U/F

Bulkhead mounting coaxial protectors attach through a panel of maximum 1/4" thickness. Device is DC blocked to stop DC continuity and accommodate all equipment types. Handles 50 kA max. surge current. Turn on voltage is a nominal 600V for L series models and 1200V for H series. Device turns on 2.5ns (L series) or 7ns (H series) after reaching DC threshold. Multi-strike capability. Aluminum enclosure and stainless steel hardware.

Specifications:

Freq. Range: 1.5 - 400 MHz

Throughput Energy: 10 mJ

Conn. Equip. Side: UHF Female

Conn. Ant. Side: UHF Female

Maximum Power @ Frequency: 1.5-50@2kW   50-220@375W  220-400@125W

Mfg. Warranty: 10 Years
