Refurbished Yaesu FT-DX5000MP-Limited 200W HF/50MHz Transceiver (B-Stock)

No free freight
Add to Wish List


Check Store Stock


Las Vegas:

Distribution Center:

Refurbished Yaesu FT-DX5000MP-Limited 200W HF/50MHz Transceiver (B-Stock)

These radios have a 90 day Factory Warranty from Yaesu. GigaParts Extended Warranty options available

NOTE: Current Yaesu Rebates do not apply with B-Stock Units

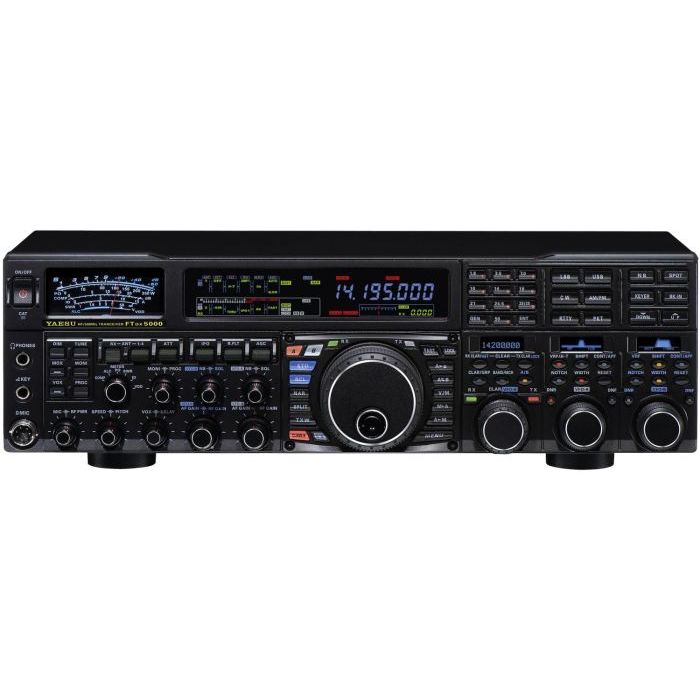

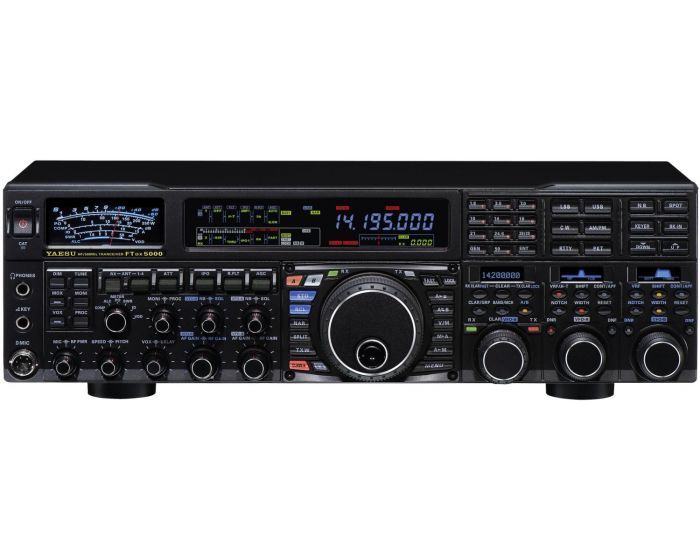

The FT-DX5000MP-LTD HF/50 MHz 200 Watt Transceiver is a Premium Class Yaesu radio with 2 Independent Receivers plus many unique options and accessories designed to meet the Performance Requirements of even the most demanding serious Amateur Radio operator.

FT-DX5000MP-LTD Brief Description

  • SM-5000 Station Monitor – Optional
  • 300 Hz Roofing Filter – Included
  • ±0.5ppm TXCO – Included

Rugged 200 Watt Output Power

The FT-DX5000MP-LTD robust and high-power Final Amplifier Stage incorporates two super reliable FET, VRF-150 (Drain-Source Voltage 170 V/Gate Source Voltage ±40 V, Total Device Dissipation 300 W) in a push-pull configuration, offers solid 200 W output (75 W Class A operation).

Internal Power Supply

The FT-DX5000MP-LTD has its own built-in power supply!

TWO Totally Independent Receivers

All FT-DX5000MP-LTD Transceivers include Two (2) Totally Independent Receivers to give you Performance and Flexibility previously only provided by much more expensive radios.

SUPERB 3rd-Order Dynamic Range & 3rd-Order Intercept Point (IP3)

  • SSB (2.4kHz BW)
  • 10 kHz SEP.:106 dB, IP3 +40 dBm
  • CW (500Hz BW)
  • 10 kHz SEP:112 dB, IP3 +40 dBm
  • 2 kHz SEP. :105 dB, IP3 +36 dBm
  • 1 kHz SEP. : 99 dB, IP3 +25 dBm
  • *VFO-A/Main Receiver @ 14 MHz, IPO1

Super Sharp “Roofing” Filters

  • Super sharp “Roofing” filters for VFO-A/Main Receiver.
  • Filters are Selectable between *300 Hz, 600 Hz, 3 kHz (6-pole crystal filter), 6 kHz, 15 kHz (4-pole MCF)
  • *300 Hz filter was optional for FTDX 5000 and FTDX 5000D. It is included in the FTDX 5000MP

High Performance Yaesu Custom-designed 32-bit Floating Point DSP

The legendary high performance Yaesu Custom-designed 32-bit Floating Point DSP based on the TI TMS320C6727B (@300 MHz), one EACH for VFO-A and VFO-B.

Variable CW Audio Peak Filter & High/Low-Cut Filtering

  • Variable CW Audio Peak Filter, and High/Low-Cut filtering created through the very latest in DSP technology.
  • - CW Width: 50/100/150/200/250/300/350/400/450/500 Hz
  • - CW Pitch Frequency: 300~1050 Hz (10 Hz Steps)

True Analog Meter Precision

Enjoy the same Huge Size Metering System as the FT-DX9000 series with True Analog Precision and Instant Reaction Time.

New Function Displays for Ease of Operation

Three Electro Luminescence clear Displays included for easier operation and control of the Sub-Frequency, Graphical Wave and Menu function.

IF Output Available

IF Output (9 MHz) from VFO-A/Main Receiver

Practical Level Indication System for Most Important Settings

The FT-DX5000MP-LTD provides loads of practical Level Indication that clearly show settings of Mic-Gain / RF Power / CW-Pitch / Keyer Speed / Processor Level / VOX Delay Time / Break-In Delay Time. They can be controlled ON/OFF independently!

Introducing the optional SM-5000 Station Monitor Bandscope

If you need a good Bandscope to enhance your operations, you are going to love our all-new SM-5000 matching station monitor. Included with the Bandscope is a complete, enhanced stereo speaker system with superb audio quality - the speakers are point at you instead of up into the air above the radio!

Other Valuable Options

Yaesu External Fully-Automatic Micro-Tuning Units. Three modes available:
