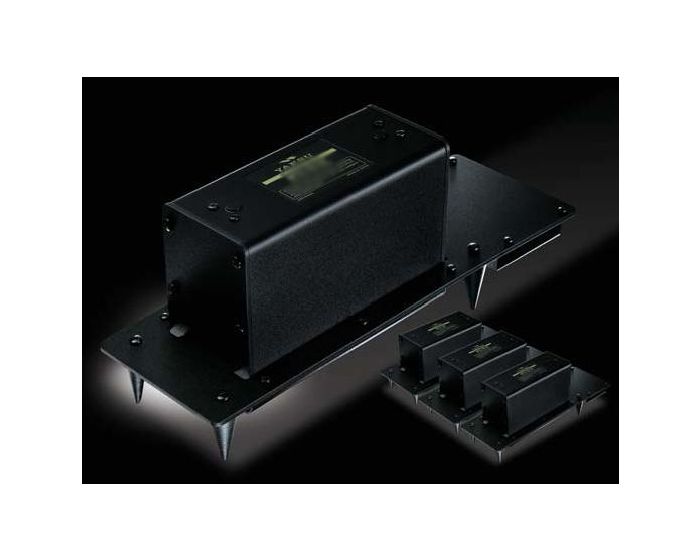

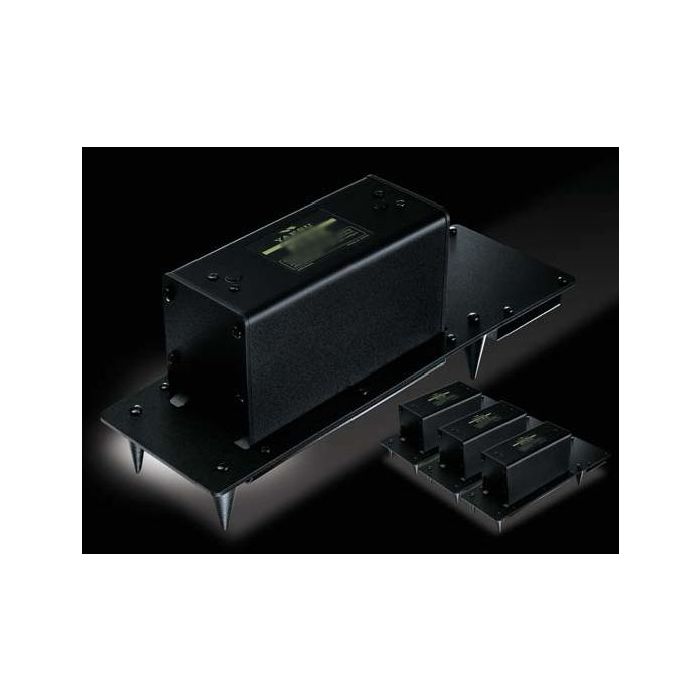

Micro-Tuning Kit with MTU-160 for the FT-950, FT-2000, FT-DX1200, FT-DX3000, FT-DX5000, & FT-DX9000 series radios.
On the lower Amateur bands, the signal voltages impinging on a receiver can create noise and Intermodulation effects that can cover up weak signals you’re trying to pull through. So YAESU’s engineers developed the µ (Mu) Tuning system for the FTDX9000, and it’s now available as an option for the FT-2000. Three modules are available (MTU-160, MTU-80/40, MTU-30/20), and these modules may be connected externally with no internal modification required! When µ-Tuning is engaged, the standard VRF (Variable RF Preselector) system is bypassed, but the fixed Bandpass Filters are still in the received signal path. The µ-Tuning filters utilize a stack of large 1.1” (28 mm) Ni-Zn Ferrite cores, driven through a silver-plated coil assembly by a precision stepper motor. The resulting high Q (typically over 300) provides a very steep resonance peak near your operating frequency. The peak may be adjusted away from your frequency, for even greater protection from a specific station, and a graphical depiction of the µ-Tune filter alignment appears on the front panel of the transceiver.
