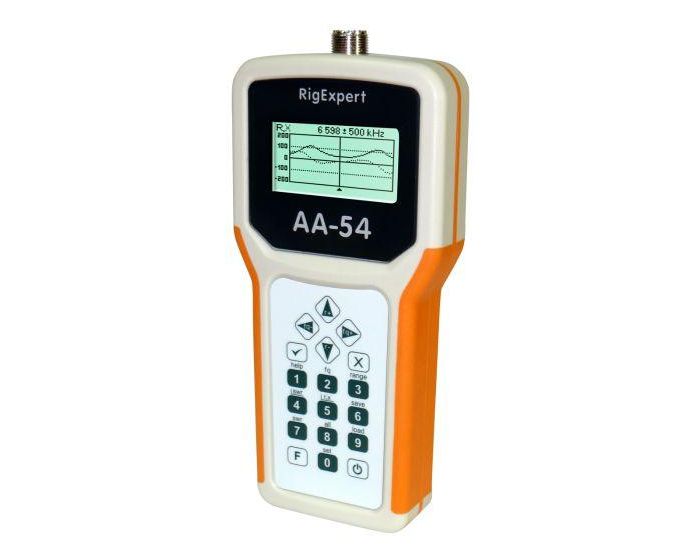

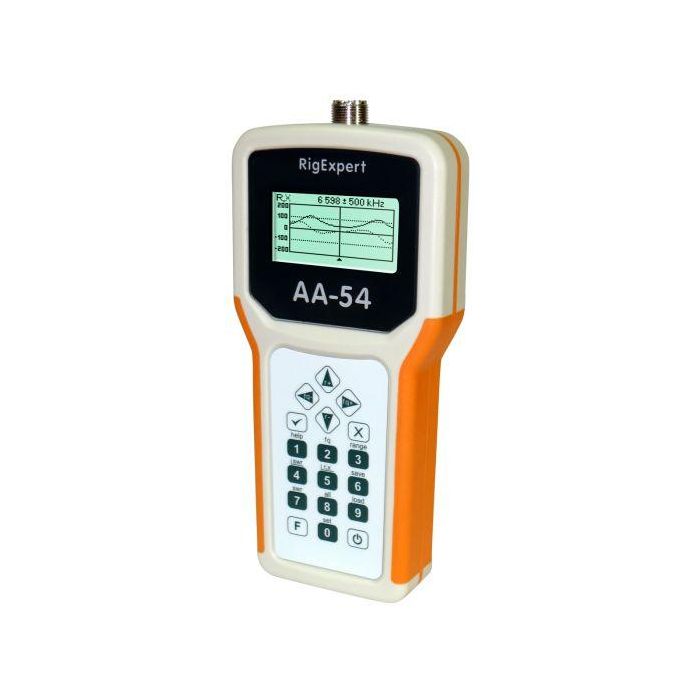

The RigExpert AA-54 is a powerful antenna analyzer designed for testing, checking, tuning or repairing antennas and antenna feedlines.

Mainly, these are SWR (Standing Wave Ratio) and impedance measurement instruments (vector impedance analyzers).

Easy-to use measurement modes, as well as additional features such as connection to a personal computer (to plot Smith charts, etc.), make the RigExpert AA-54 attractive for professionals and hobbyists. It is quite important that graphical display of various parameters over a wide frequency range is a key feature of these analyzers which significantly reduces the time required to adjust an antenna.

The following tasks are easily accomplished by using the RigExpert AA-54 analyzer:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Antenna SWR and impedance measurement and comparison before and after specific event (rain, hurricane, etc.)
  • Making coaxial lines or measuring their parameters
  • Cable testing and fault location
  • Measuring capacitance or inductance of reactive loads

Frequency range: 0.1 to 54 MHz

Frequency entry: 1 kHz resolution

SWR measurement range: 1 to 10
SWR measurement for 50 and 75-Ohm systems
SWR display: numerical or easily-readable bar
R and X range: 0…1000, -1000…1000 in numerical mode, 0…200, -200…200 in graph mode

Display modes:
– SWR at single or multiple frequencies
– SWR, R, X, Z, L, C at single frequency
– SWR graph, 100 points
– R, X graph, 100 points

RF output:
– Connector type: UHF (SO-239)
– Output signal shape: square, 0.1…10.8 MHz. For higher frequencies, fifth (AA-54) harmonics are used.
– Output power: about +13 dBm (at 50 Ohm load)

Power:
– Two 1.5V, alkaline batteries, type AA
– Two 1.2V, 1800…2700 mA·h, Ni-MH batteries, type AA *
– Max. 3 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
– 128×64 graphical backlit LCD
– 6×3 keys on the water-proof keypad
– multilingual menus and help screens
– USB connection to a personal computer

Dimensions: 22·10·3.6 cm (9·4·1.5”);

Operating temperature: 0…40 °C (32…104 °F)

Weight (including batteries): 400g (14 Oz)

Warranty: 2 years

RigExpert AA-54 are made in Ukraine.

GTIN-13: AA-54: 4820185420013

Specifications are subject to change without notice.

* Ni-MH batteries are not included with the analyzer.
