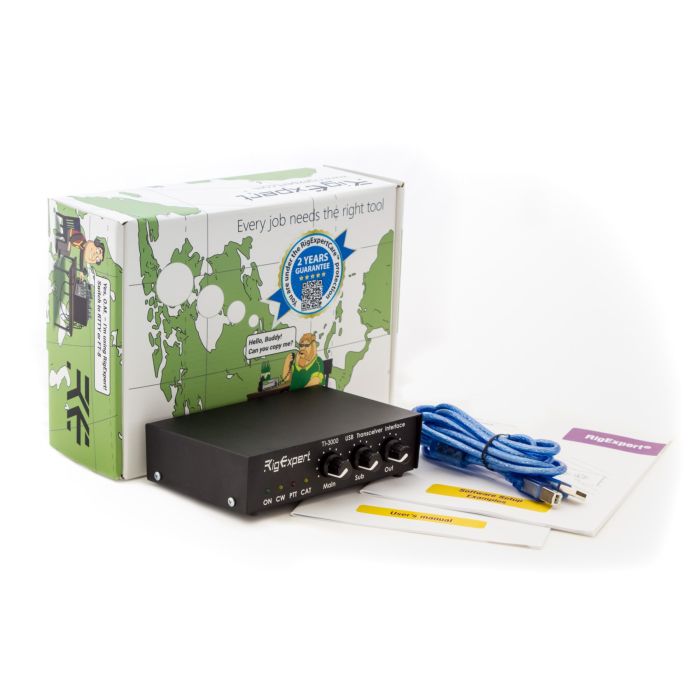

RigExpert TI-3000 is a new and powerful USB transceiver interface based on high-quality stereo codec IC, for operating phone, CW and digital modes using a personal computer.
All in one through a single USB port. Ideal interface for FT8 and WSJT modes!
TI-3000 provides: Transceiver audio interface Analog audio interface is a connection to transceiver audio output (external speaker connector or line output) and transceiver audio input (microphone connector or line input). Audio interface enables operating digital modes, as well as other useful functions (such as measuring levels of a signal from the air) by using a computer. Input (two channels) and output volume levels are adjusted by potentiometers on the front panel of the device.
CAT interface for various transceiver models CAT (Computer Aided Transceiver) system provides control of transceiver frequency, operating mode and other functions by computer software. Normally, modern transceivers have serial (with various signal levels) link providing CAT interface. In RigExpert TI-3000, CAT interface port is recognized as a COM port by computer software
PTT and CW output functions Transceivers provide PTT (Push To Talk) and CW (Continuous Wave) keyer inputs to allow setting the transmitter on or off. In RigExpert TI-3000, PTT and CW outputs are assigned to the RTS and DTR lines of a separate COM port.
