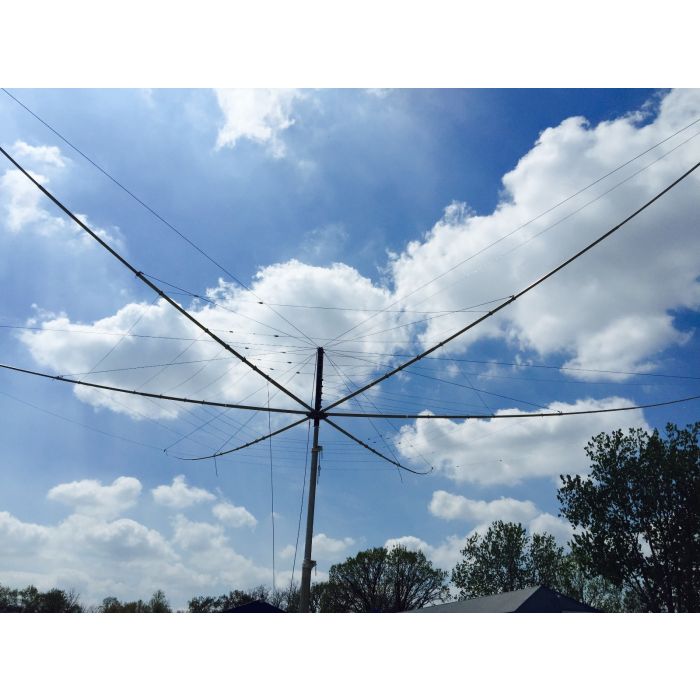

The Sentinel Barrett Six Band 40m – 10m Hex Beam Antenna
Features:
- Up to Six bands (20 – 6) fed by a single coax
- Low SWR
- Requires only one [1] Feed-line
- No tuning required, just plug and play
- Improved broad band response over original hex beam design
- Performs well at lower heights
- Handles full legal limit of power
- Small physical foot print, 33% smaller than a full sized beam.
Coverage 40m, 20m,17m,15m,12m, 10m
- Gain: 6.1 dBi
- Front/Back: Peak > 20dB
- VSWR: Less than 2:1
- Turn Radius: 21 Ft at a heigh of 48"
- Diameter of Beam: 42 Ft
- Height of Beam: 60″
- Weight: 90 lbs
- Wind Load Area: < 12 sq ft
- Power handling: Full legal limit
