Radiowavz Sentinel Barrett Broadband

$1,700.00
Radiowavz Sentinel Barrett Broadband SKU: ZRW-SENTINEL160

$1,700.00

Free Shipping!

Reserve yours now! (Ships in 30+ days)

Check Store Stock

Huntsville Store:

Las Vegas:

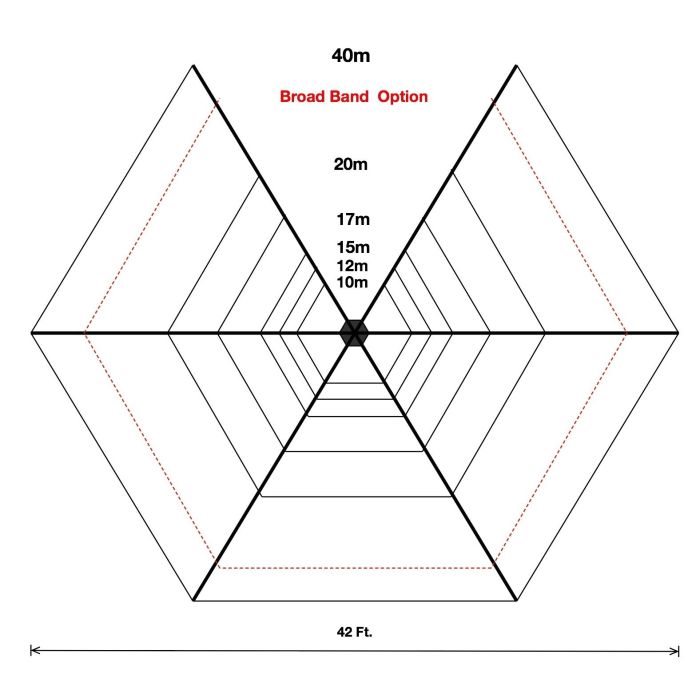

Sentinel Barrett All Band 160m, 80m, 40m, 20m,17m,15m,12m,10m, [Broadband] Hex Beam Antenna

Features:

  • 160m, 80m, 40m, 20m,17m,15m,12m,10m, fed by a single coax
  • Low SWR
  • Requires Two [2] Feed-lines
  • CAP/MARS/GOV/Public Service Frequencies
  • No tuning required, just plug and play
  • Improved broad band response over original hex beam design
  • Performs well at lower heights
  • Handles full legal limit of power
  • Small physical foot print, 33% smaller than a full sized beam.

Coverage 160m, 80,40m, 20m,17m,15m,12m,10m,

  • Gain: 6.1 dBi
  • Front/Back: Peak > 20dB
  • VSWR: Less than 2:1
  • Turn Radius: 21 Ft
  • Diameter of Beam: 42 Ft
  • Height of Beam: 60″
  • Weight: 32 lbs
  • Wind Load Area: < 12 sq ft
  • Power handling: Full legal limit
